3217-14WD

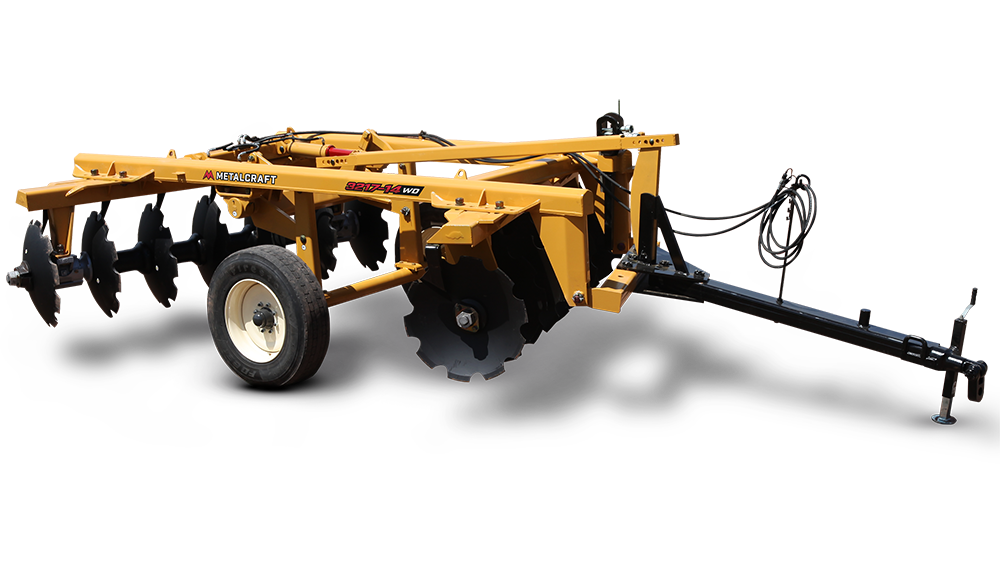

3217-14WD icon

The 3217-14WD is a heavy duty wheeled offset disc harrow and has a heavy-duty steel mainframe that provides maximum strength and superior visibility. Whether the job is road building, land clear or soil blending, this disc harrow was built to tackle any condition. This machine is ideal for contractor who primarily user MFWD tractors from 150 HP or larger.

Find a Dealer
11' Cutting Width icon
11' Cutting Width
14 Baldes icon
14 Baldes
Adjustable Gang Angles icon
Adjustable Gang Angles
Excellent Ground Engagement icon
Excellent Ground Engagement
Oil Bath Bearing icon
Oil Bath Bearing
Flotation icon
Flotation
Trash Clearance icon
Trash Clearance
Warranty icon
Warranty
Shipping icon
Shipping
Self-Leveling Hitch icon
Self-Leveling Hitch

11′ (3.35 m) cutting width

14 blades manufactured with the highest quality discs in the world to tear up soil in any situation.

Heavy-duty gang beams.

Providing the greatest amount of blade digging force and giving you the highest weight per blade performance.

Oil Bath gang bearings for long service life and less downtime in extreme conditions.

Two new 445/50R-22.5 tires carry these disc harrows over-demanding job sites and rough field conditions.

The lift system within the mainframe provides ample clearance to prevent trash buildup or clogging ahead of the wheels.

1 Year structural, 6 months parts and labor.

Available for containerized international shipping

Self leveling hitch.

Specifications

Imperial / Metric
General Specifications
Transport Specifications
Recommended Power 190 - 450 HP 142 - 336 kW
Blade Diameter 32" 81 cm
Blade Thickness 0.472" 12 mm
Blade Spacing 17" 43 cm
Blade Qty. 7 Front, 7 Rear 7 Front, 7 Rear
Weight, Total 10,083 lb 4,574 kg
Weight / Blade 720 lb 327 kg
Width of Cut 8'8" 2.6 m
Bearing Oil Bath Oil Bath
Gang Shaft Dia. 2.5" 64 mm
Tire Size (2) 295/75R22.5 (2) 295/75R22.5
Hub 10 Bolt Hub 10 Bolt Hub
Spindle Dia. 3.5" 89 mm
Hyd. Cyl. Lift Qty. 2 2
Shipping Width 9'9" 2.97 m
Shipping Length 24'2" 7.36 m
Length (folded) 17'5" 5.31 m
