Ox Block

Ox Block icon

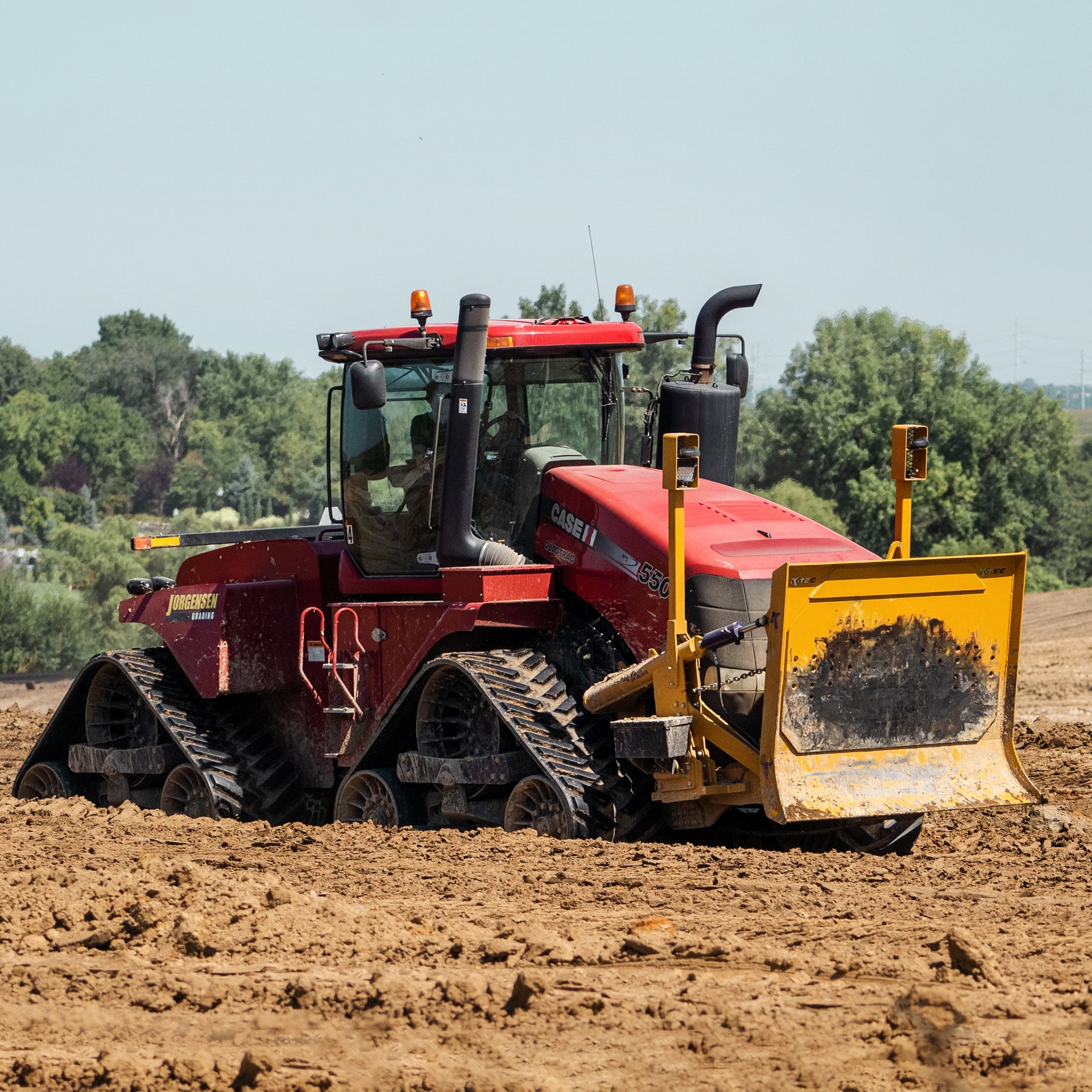

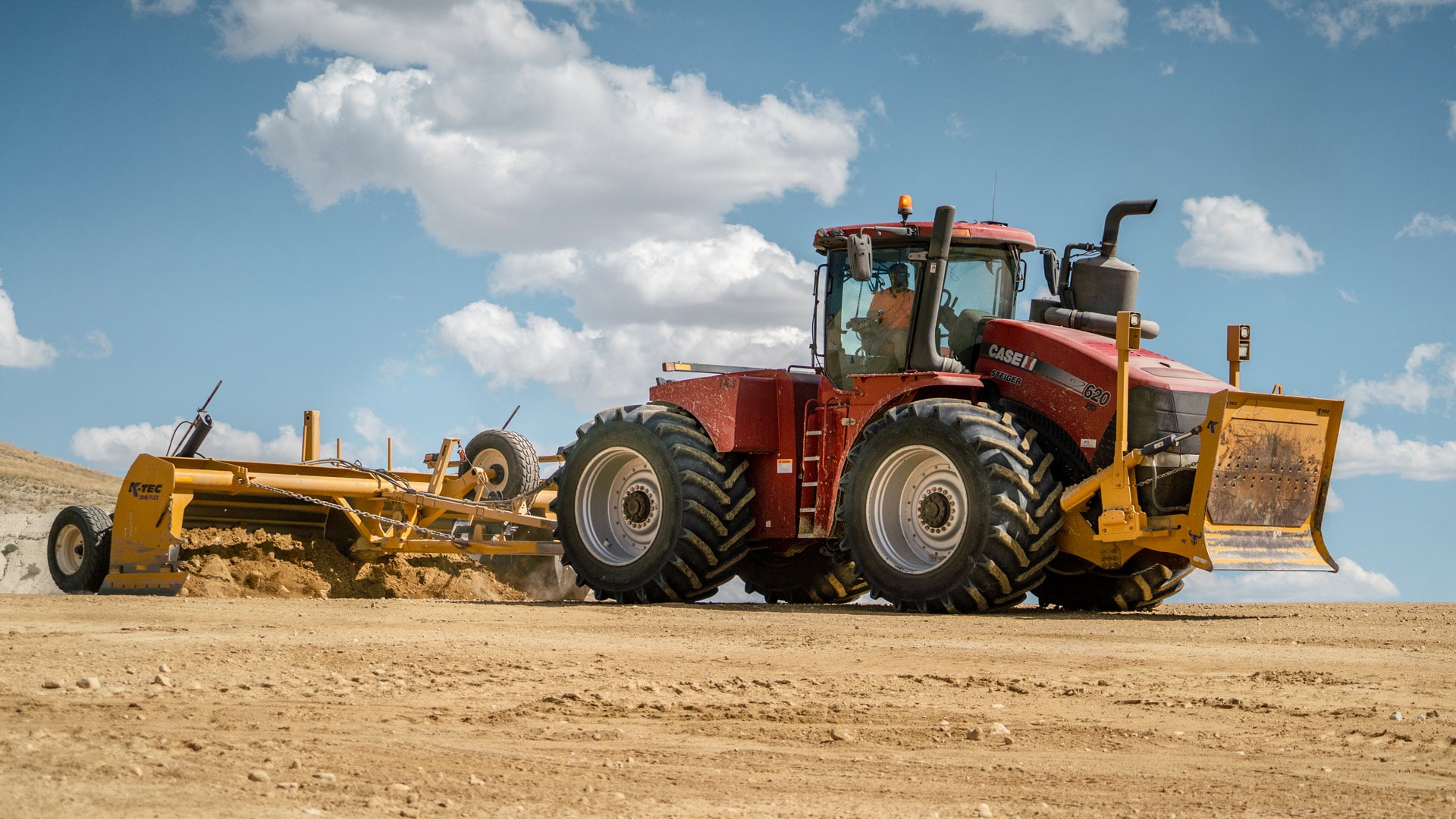

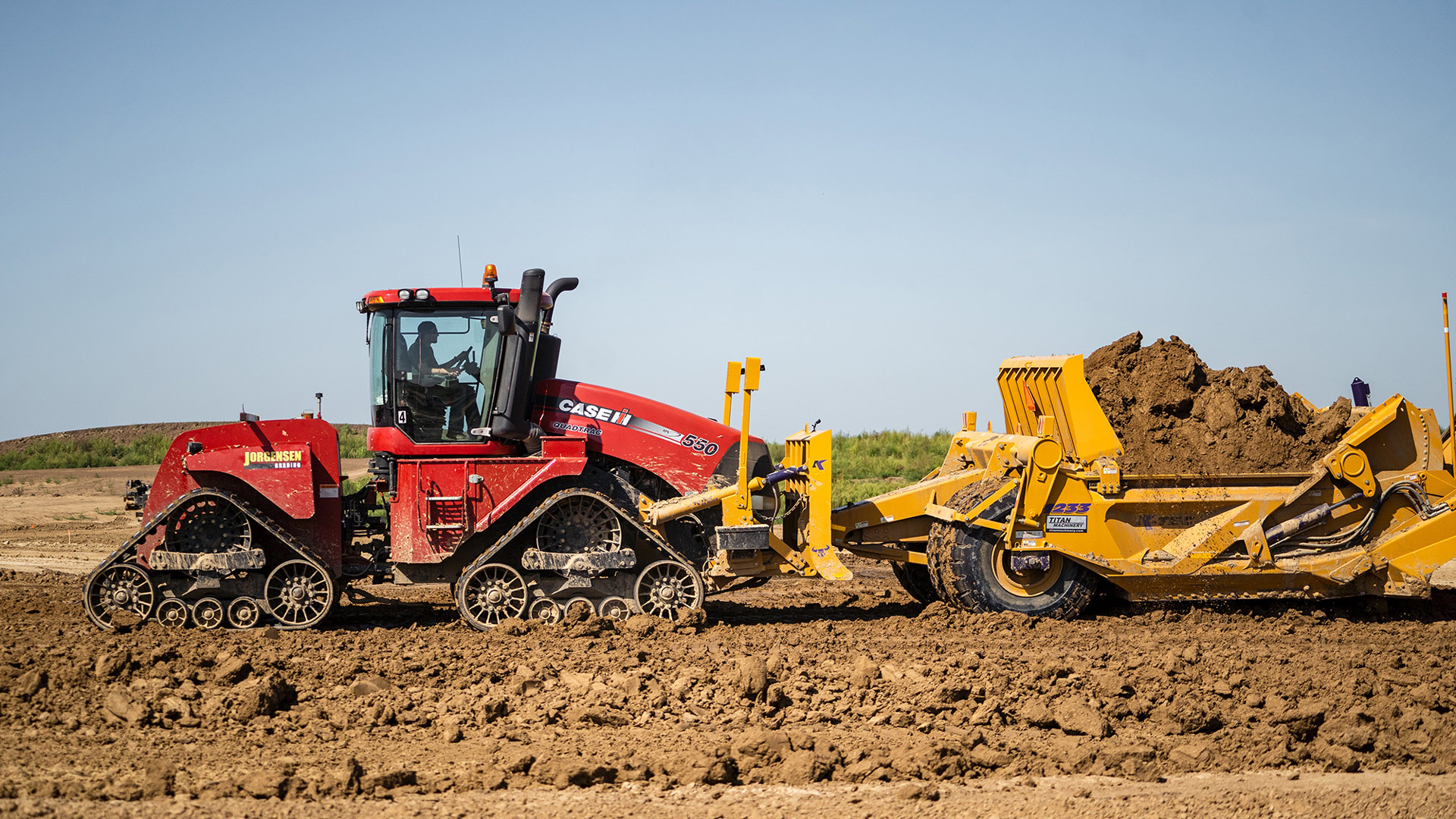

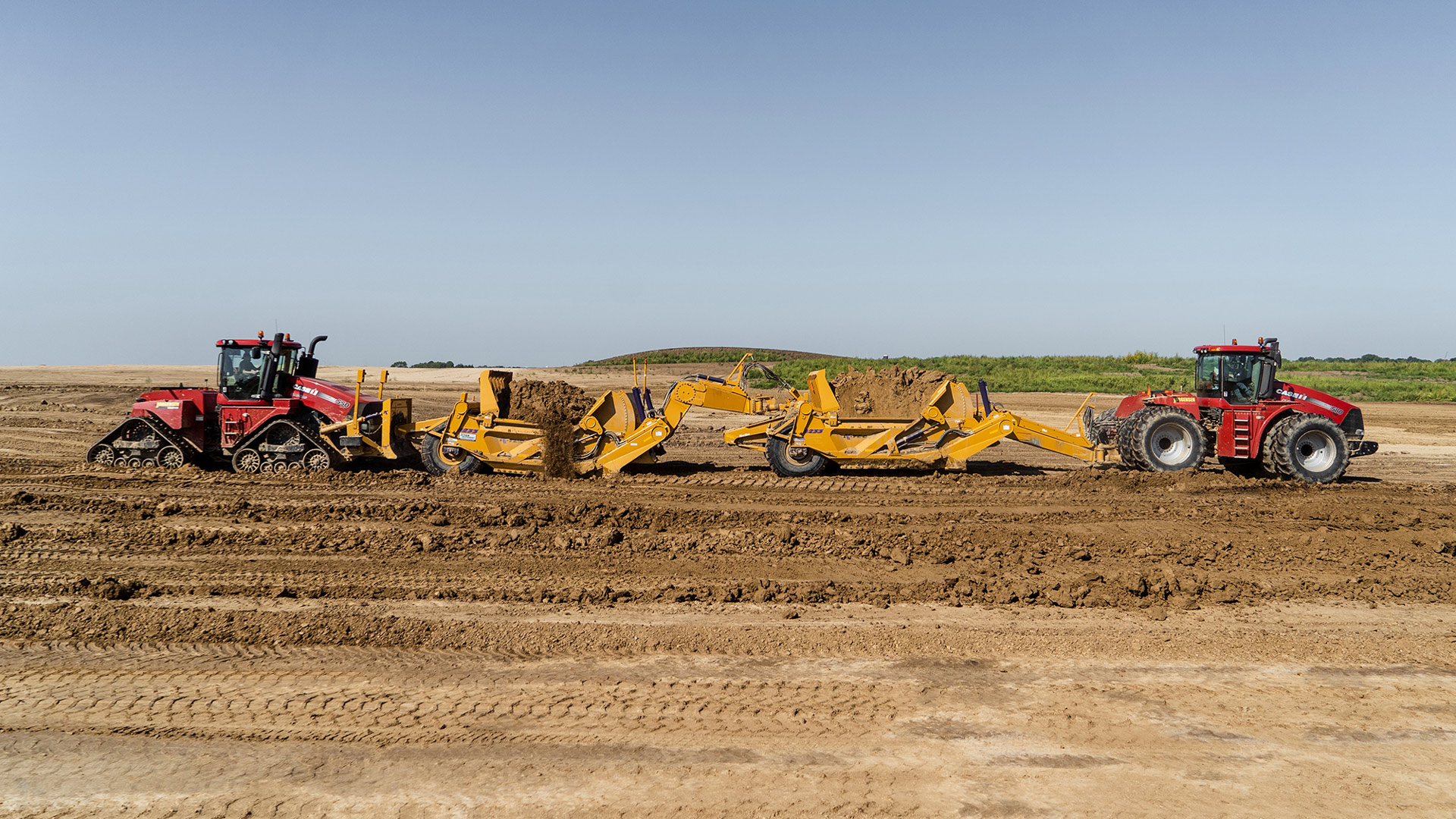

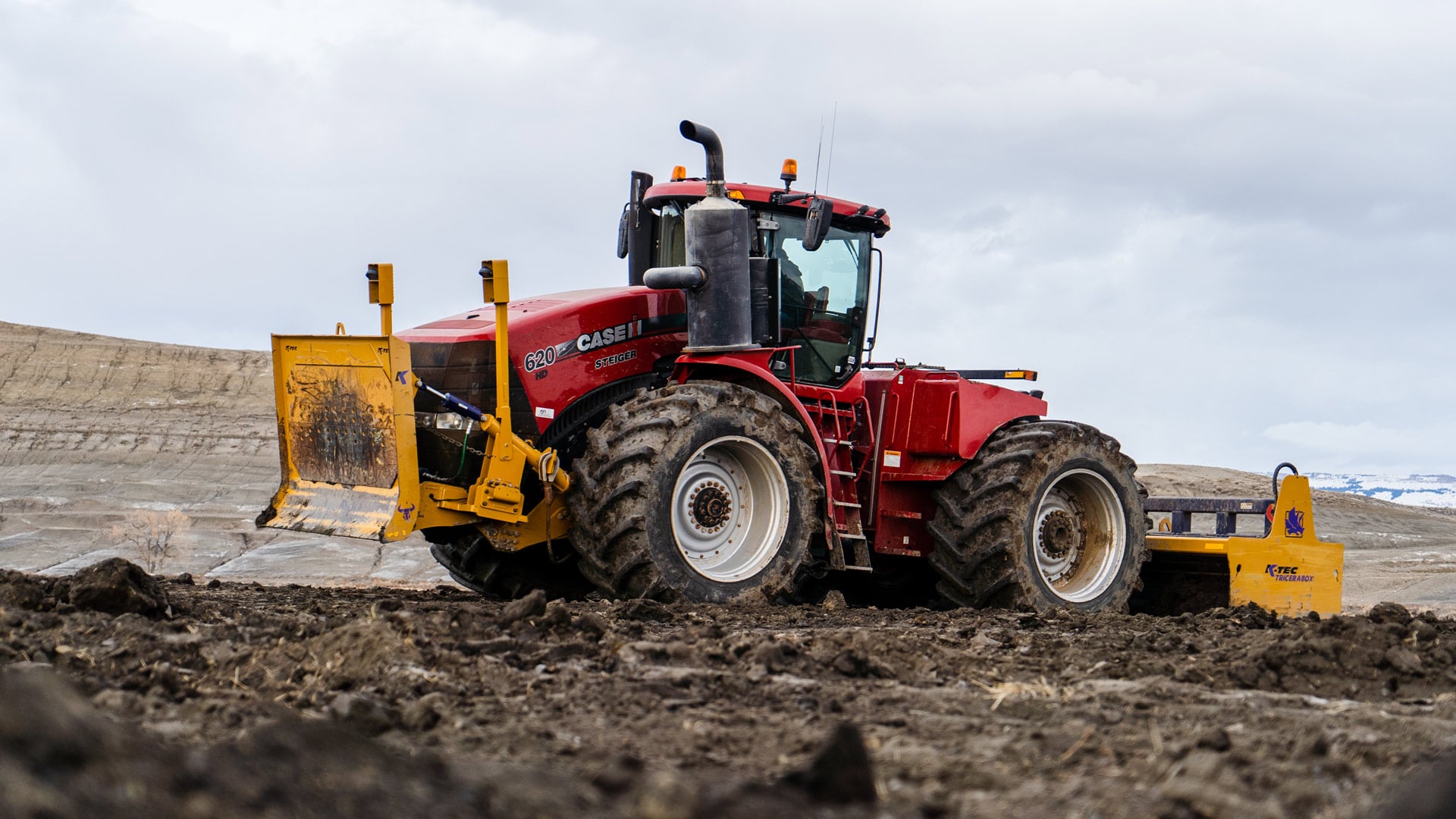

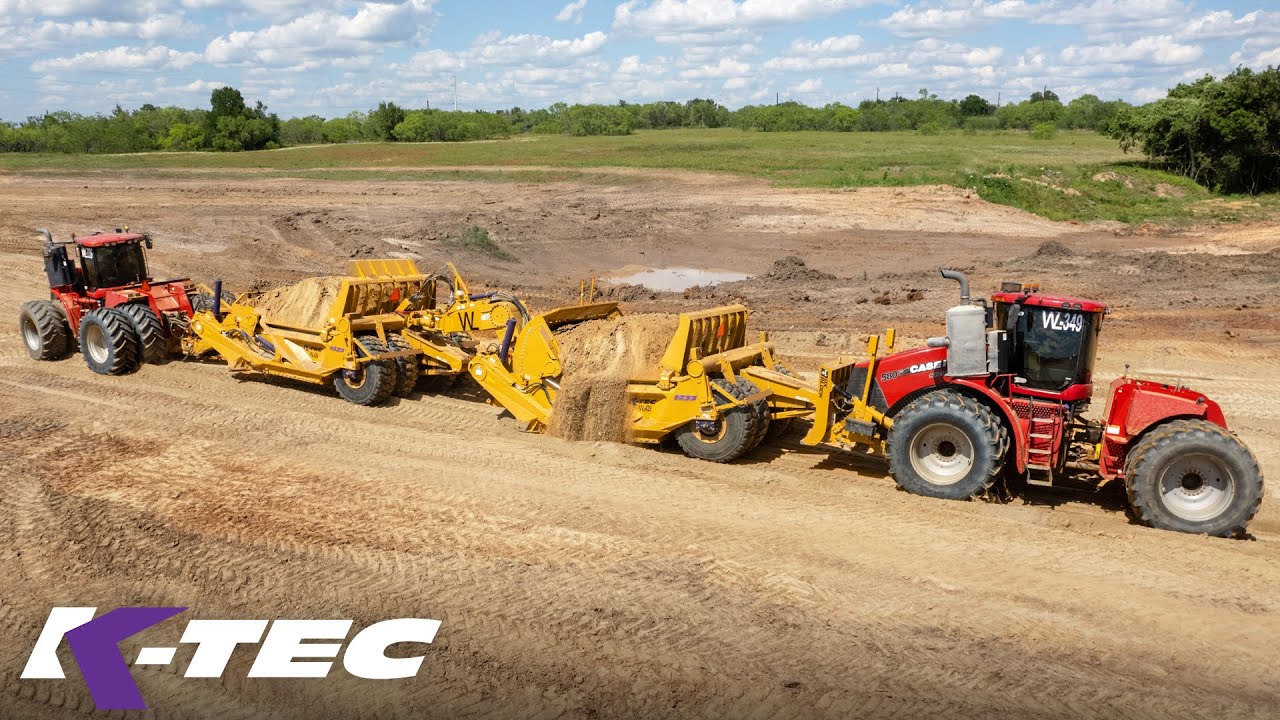

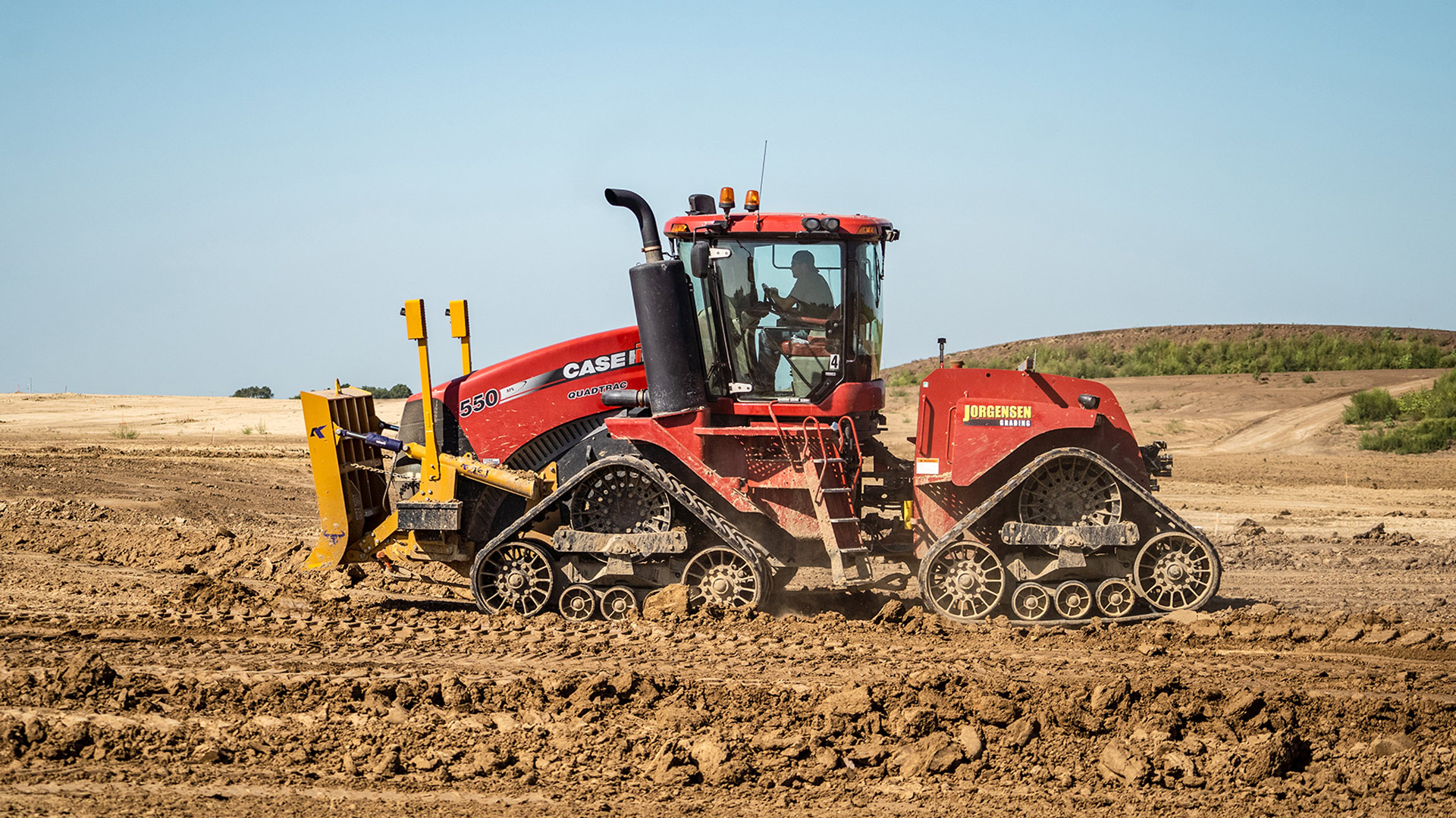

The Metalcraft Ox Block is a push block designed for push-loading scrapers to help reach maximum capacity and decrease scraper loading time in the cut zone, which ultimately improves jobsite productivity. Compared to a bulldozer, contractors will see increased fuel efficiency while reducing undercarriage costs by a minimum of 50% while obtaining substantially higher speeds in the cut zone.

Find a Dealer
6' Width icon
6' Width
Tensile Tec icon
Tensile Tec
Cushion Push icon
Cushion Push
Warranty icon
Warranty
Road Transport icon
Road Transport
Shipping icon
Shipping

6′ (1.82m) push area and replaces tractor suitcase weights for balanced performance.

Hardox / Weldox steel technology makes stronger and lighter K-Tec products.

Cushion push hydraulic cylinders reduces impact shock on tractor frame and scraper.

1 Year structural, 6 months parts and labor.

Meets legal road width restrictions for easy transport between jobsites.

Available for containerized international shipping

Specifications

Imperial / Metric
General Specifications
Transport Specifications
Block Dimensions 7’ 2” W x 5’ 5” H 2.2 m W x 1.65 m H
Cushion-Push Technology Standard Standard
LED Lights Standard Standard
Overall Width 7’ 2” 2.18 m
Overall Length 7’ 10” 2.4 m
Weight 5,820 lb 2,640 kg
