2016E

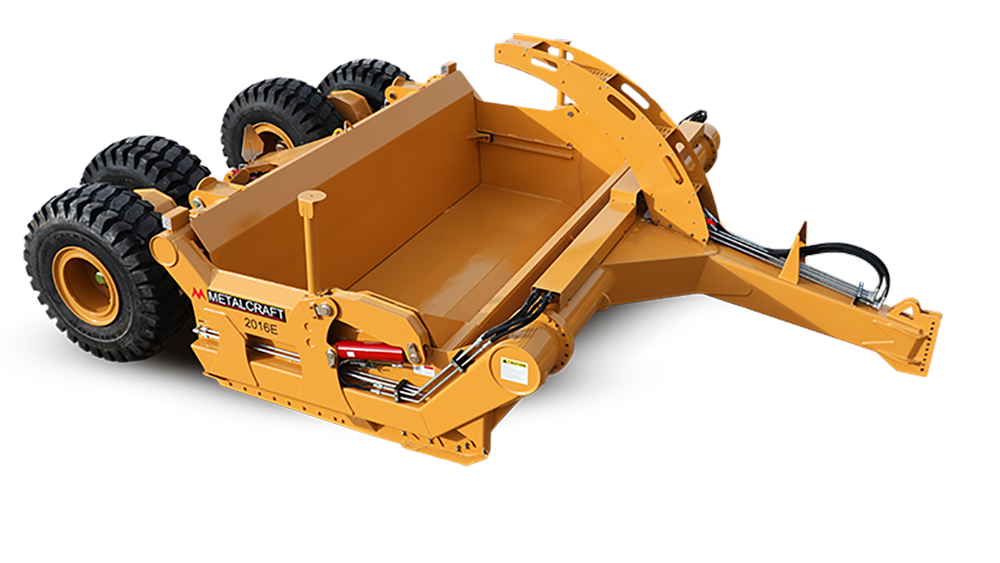

2016E icon

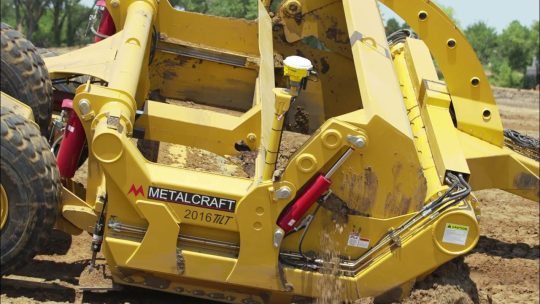

The 2016E is built tough to tackle the brutal workout of daily bulk earthmoving with the right features to complete finish grading. With an extra wide 16ft (4.88m) cutting width and a heaped capacity of 20 yd3 (15.3 m3), this specialized machine is the perfect multifunction solution to complete your earthmoving projects.

Download Complete Brochure (Printer Friendly)
Find a Dealer

Media

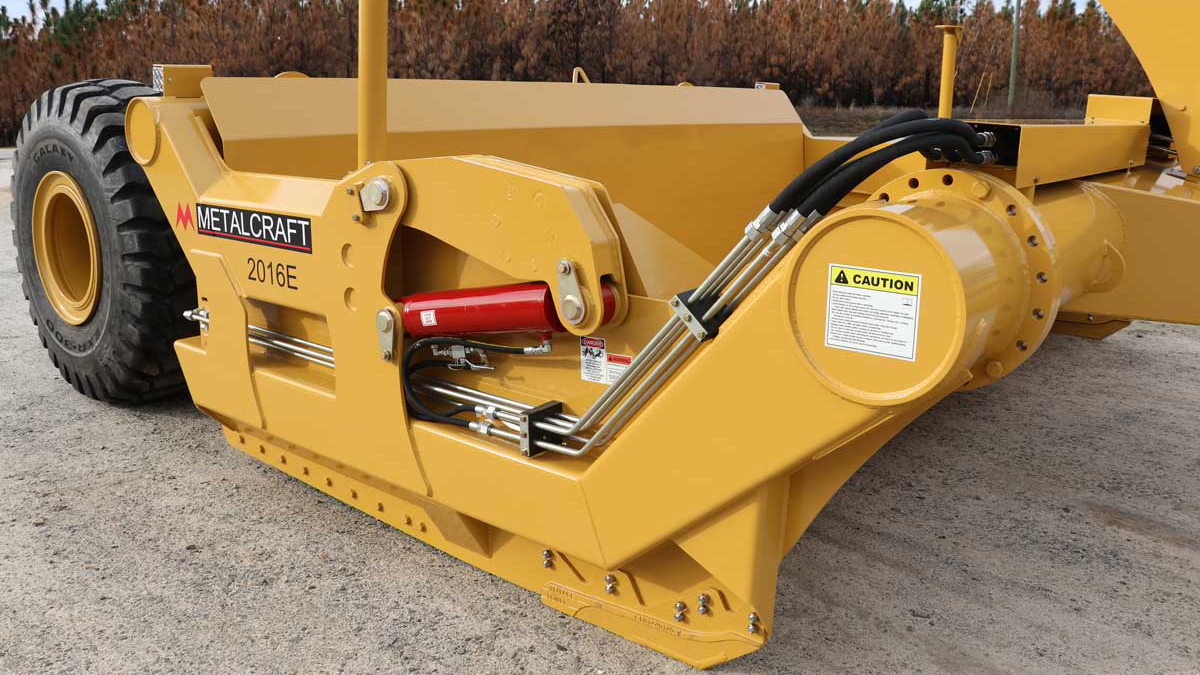

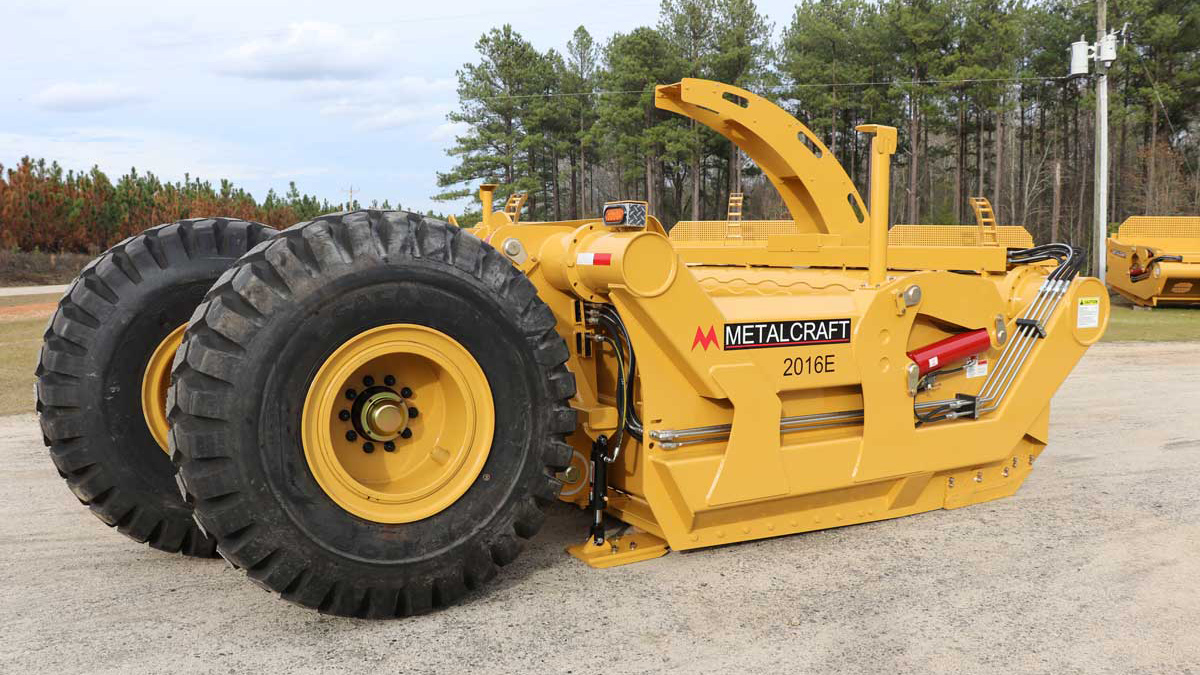

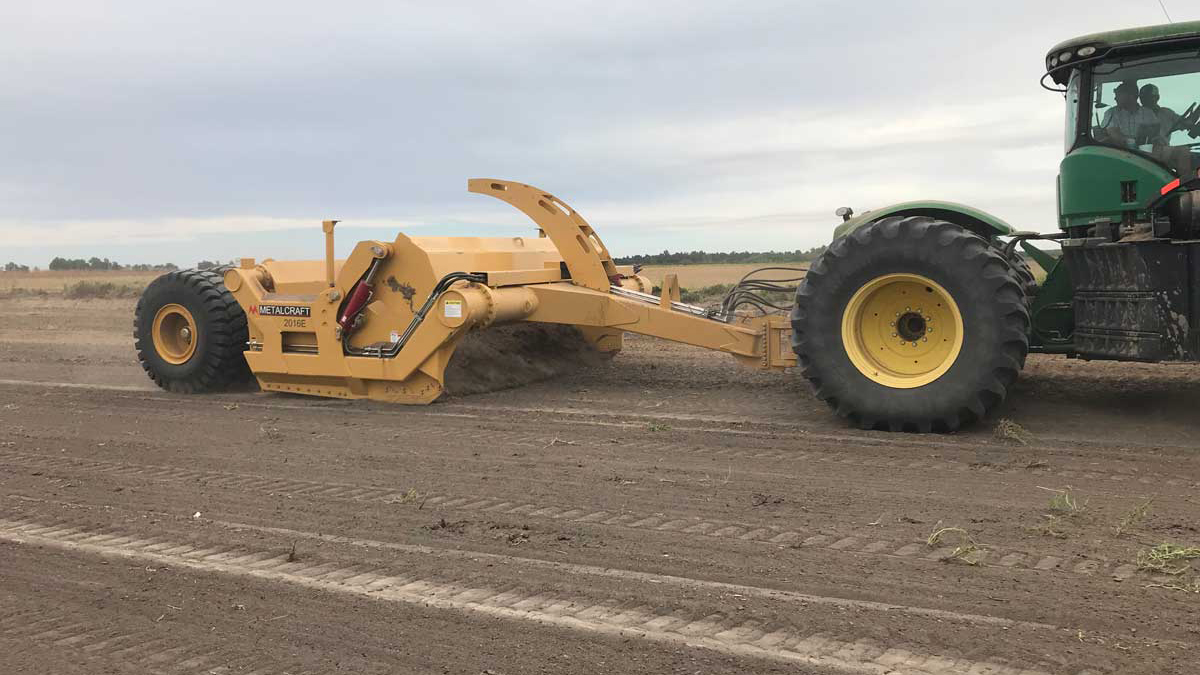

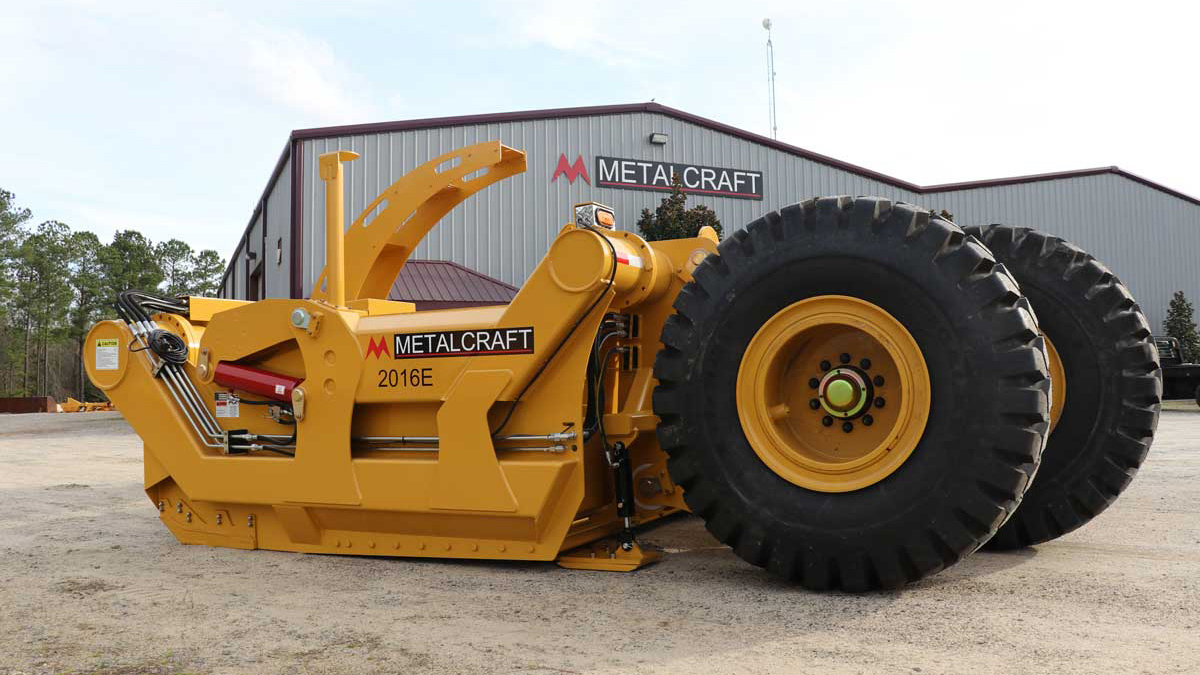

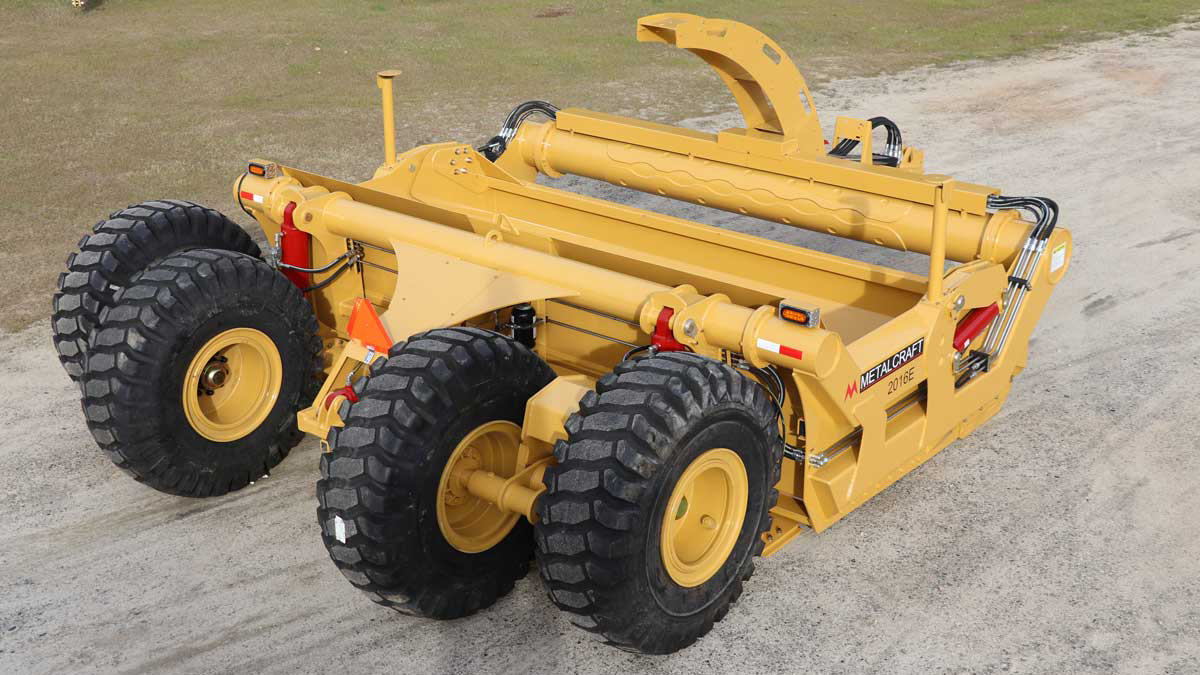

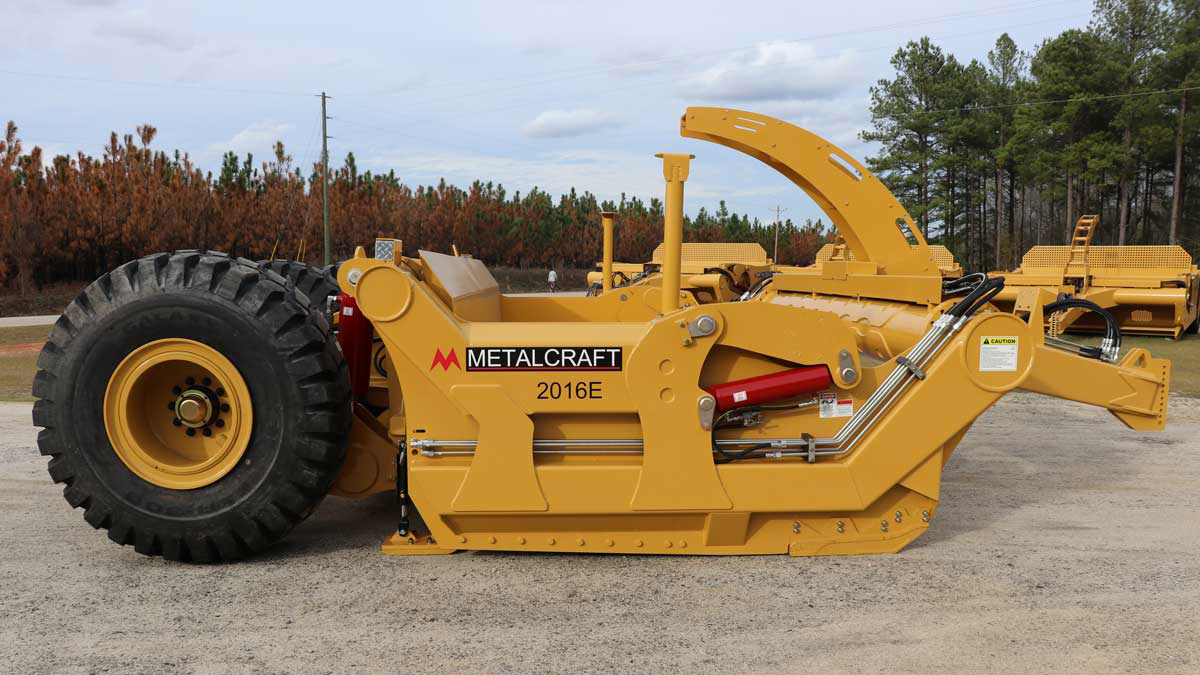

2016e 2016e Aerial 2016e Aerial Back 2 2016e Side 2 2016e Side 2016e Side 3 2016e Front 2016e Side Close 2016e Aerial Back 2016e Side Tractor 3 2016e Side Tractor 2016e Side Tractor 2 2016e Hydraulic Stand 2016e Lights 2016e Transport
Rear Lift Tilt icon
Rear Lift Tilt
Ejector Guides icon
Ejector Guides
Easy Loading icon
Easy Loading
Robust Hydraulics icon
Robust Hydraulics
Additional Safety icon
Additional Safety

Create precision slopes with 3D/GPS machine control

Nylon block ejector guides and simple track design instead of problematic steel rollers.

Designed with a low angle of attack to ensure fast and easy loading

Zinc coated flat-face o-ring couplers and all steel cylinders components keep you productive.

Metalcraft scrapers are designed with built in shut off valves on the cylinders as an additional safety during maintenance or repairs.

Specifications

Imperial / Metric
General Specifications
Transport Specifications
Heaped Capacity 20 yd3 15.3 m3
Struck Capacity 14 yd3 10.7 m3
Cutting Width 16' 4.9 m
Tires 23.5 x 25 23.5 x 25
Required Power 450 HP+ 331 kW+
Standard GPS Bracket Center and Sides Center and Sides
Dimensions 17'4" W x 30'1" L x 10'6" H 5.3 m W x 9.2 m L x 3.2 m H
Weight 28,000 lb 12,701 kg
