2814E

2814E icon

Made for heavy-duty construction, the rugged structural design of 2814E scraper can handle the most extreme earthmoving conditions over the course of the machine’s extensive lifetime. The 2814E is a rear lift controlled scraper which allows the pan to be lowered level with the ground while cutting to easily scoop up loose material. The ejector of the 2814E extends beyond the front edge of the scraper to eliminate carry-back. These loading and unloading features ensure that you maintain efficiency on every cycle.

Download Complete Brochure (Printer Friendly)
Find a Dealer

Media

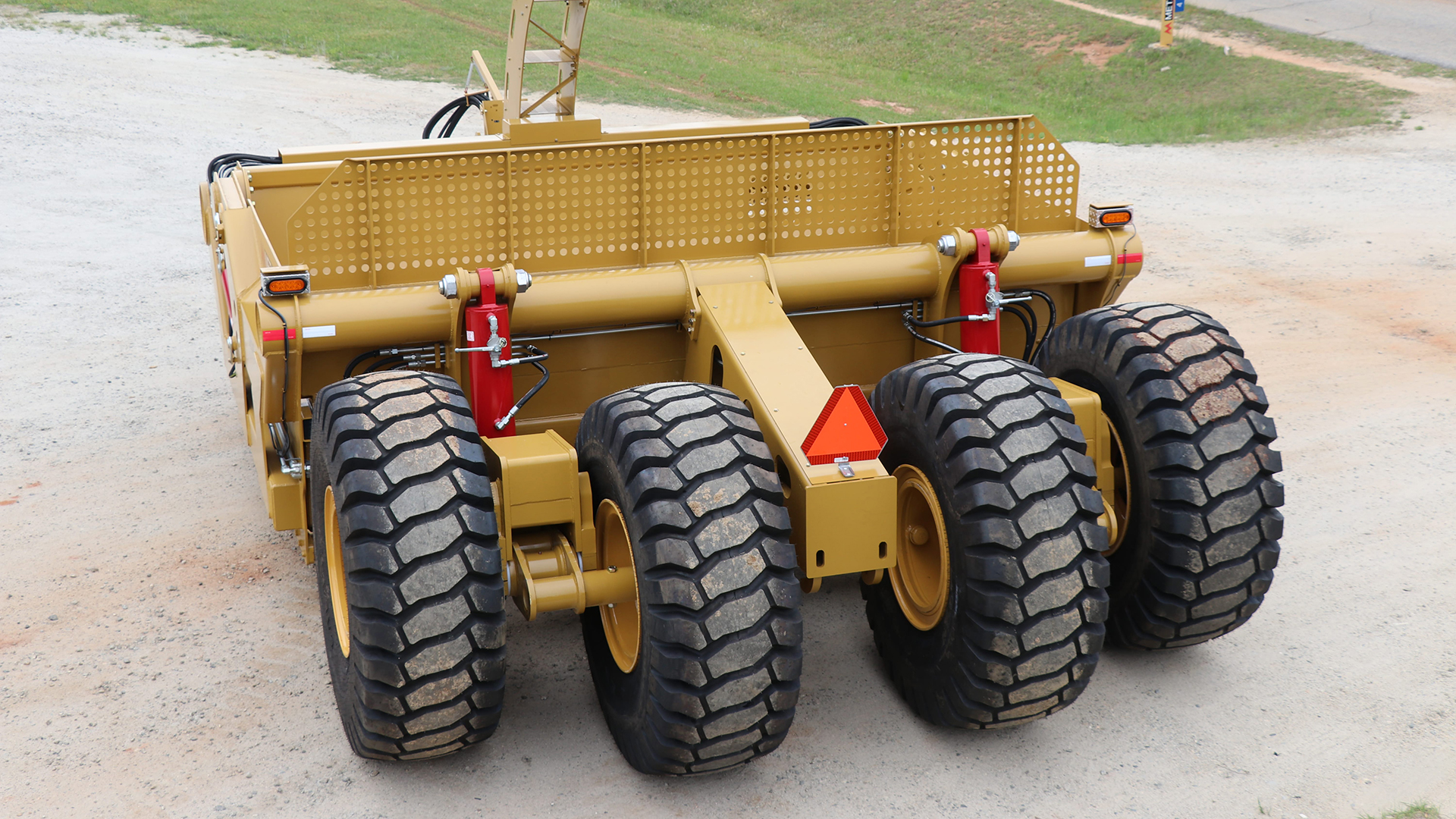

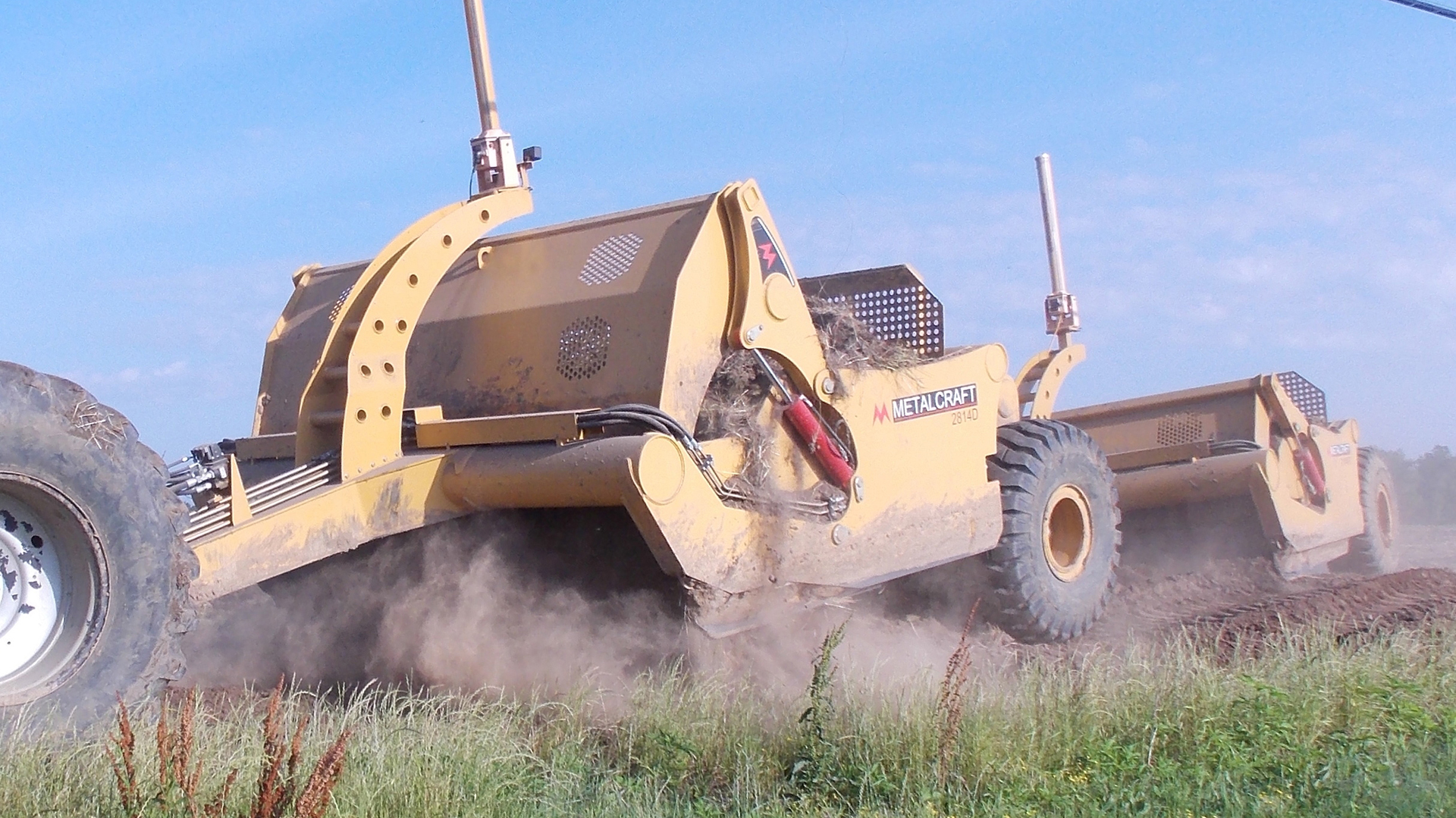

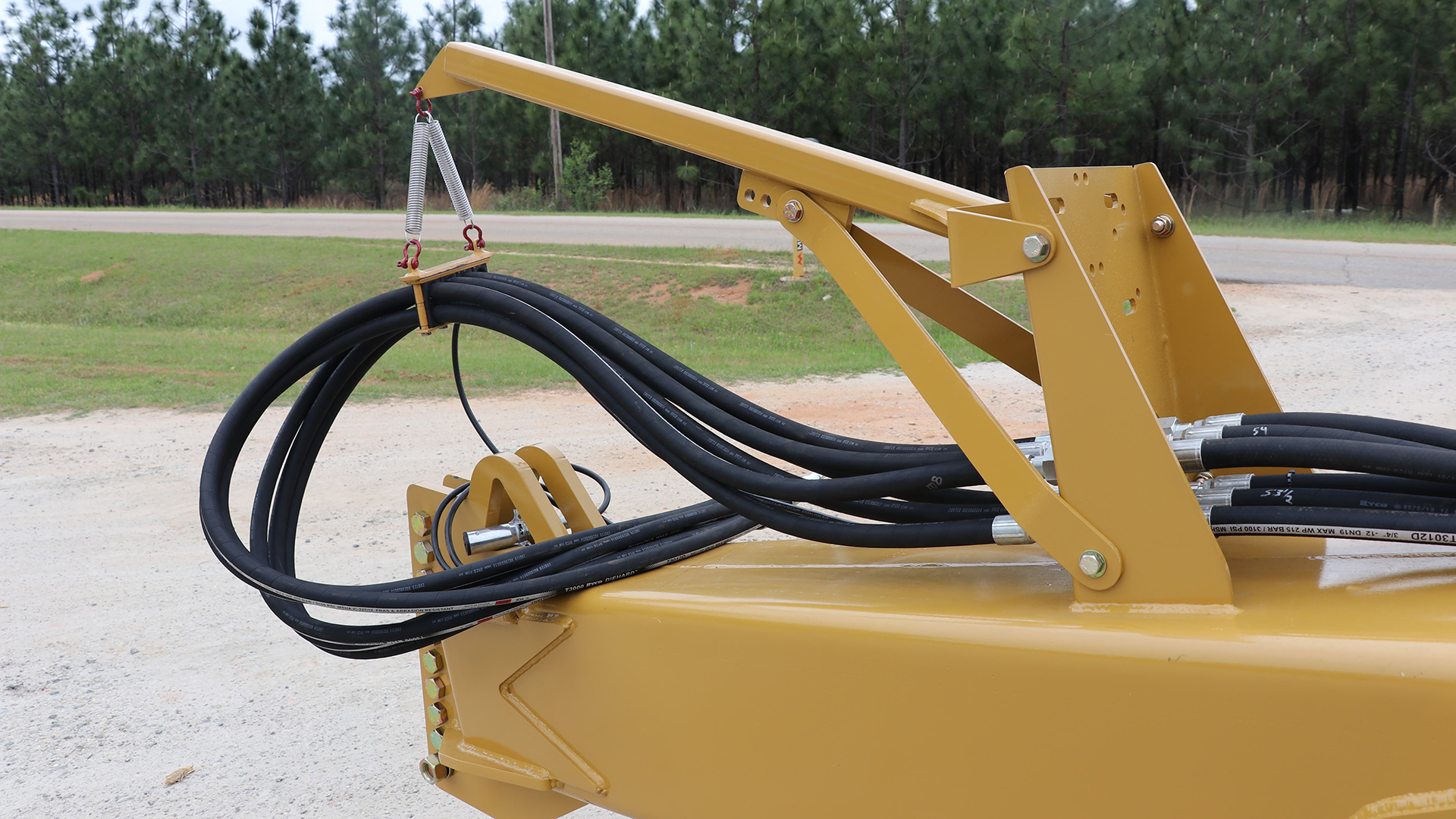

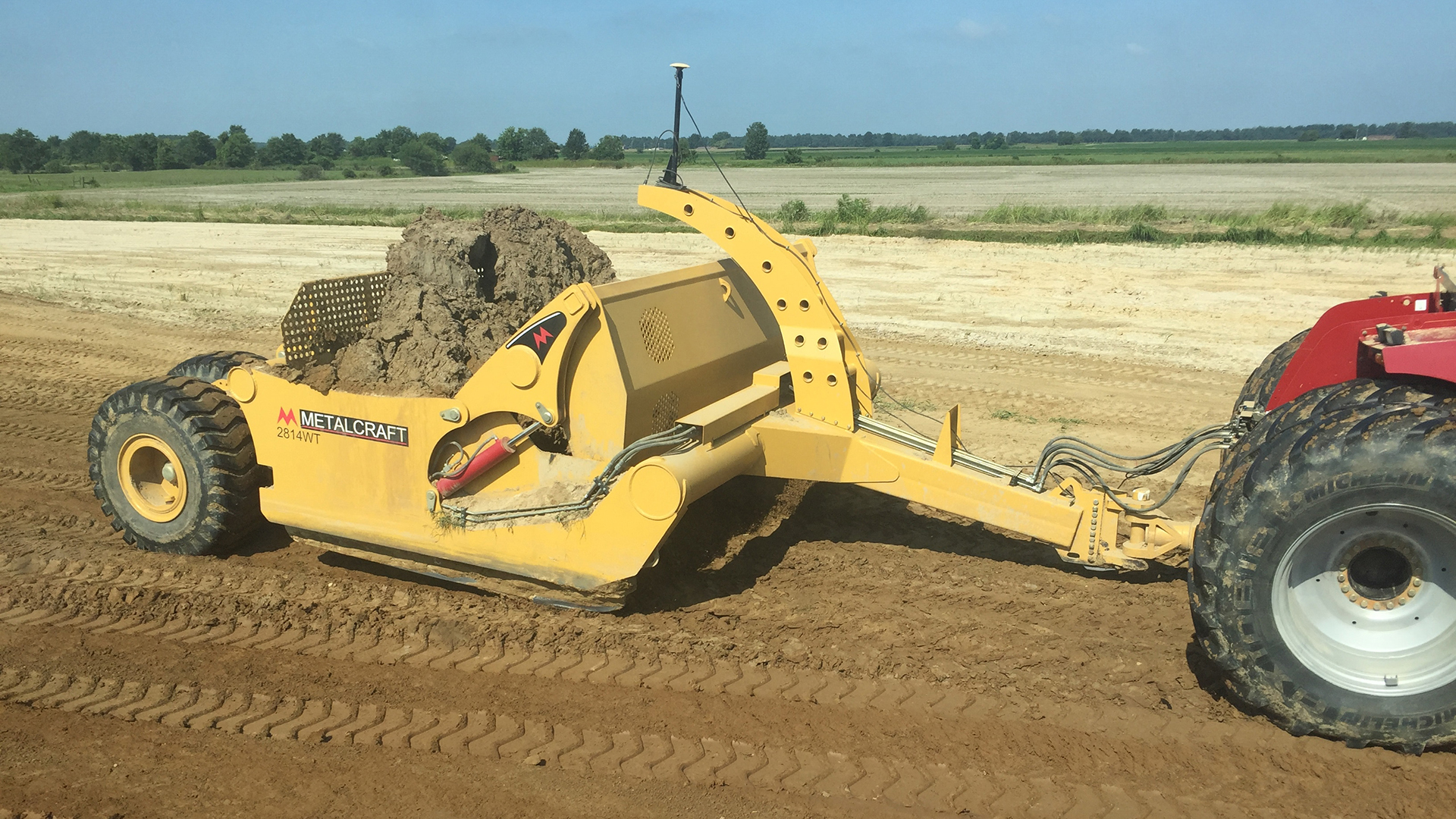

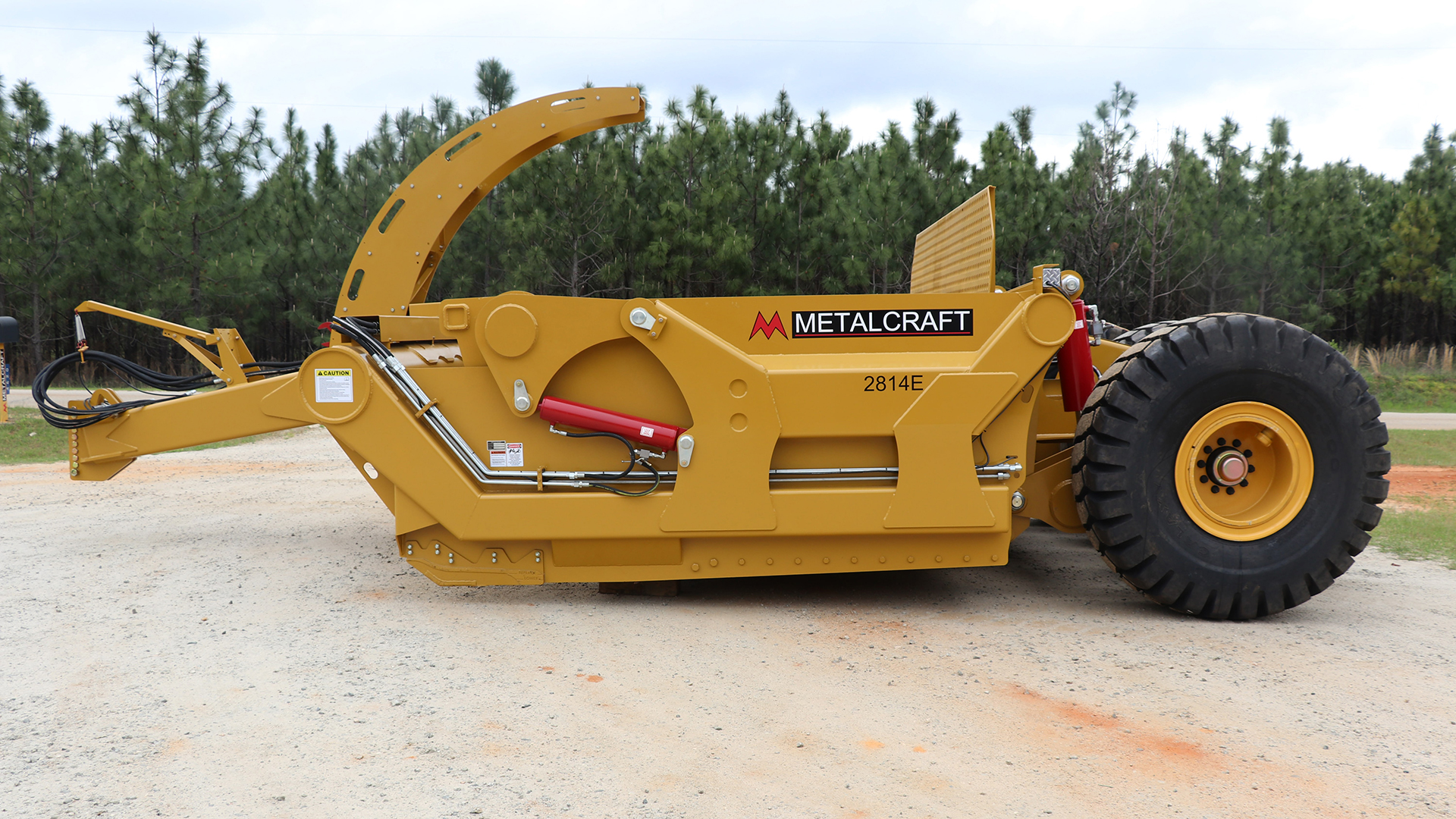

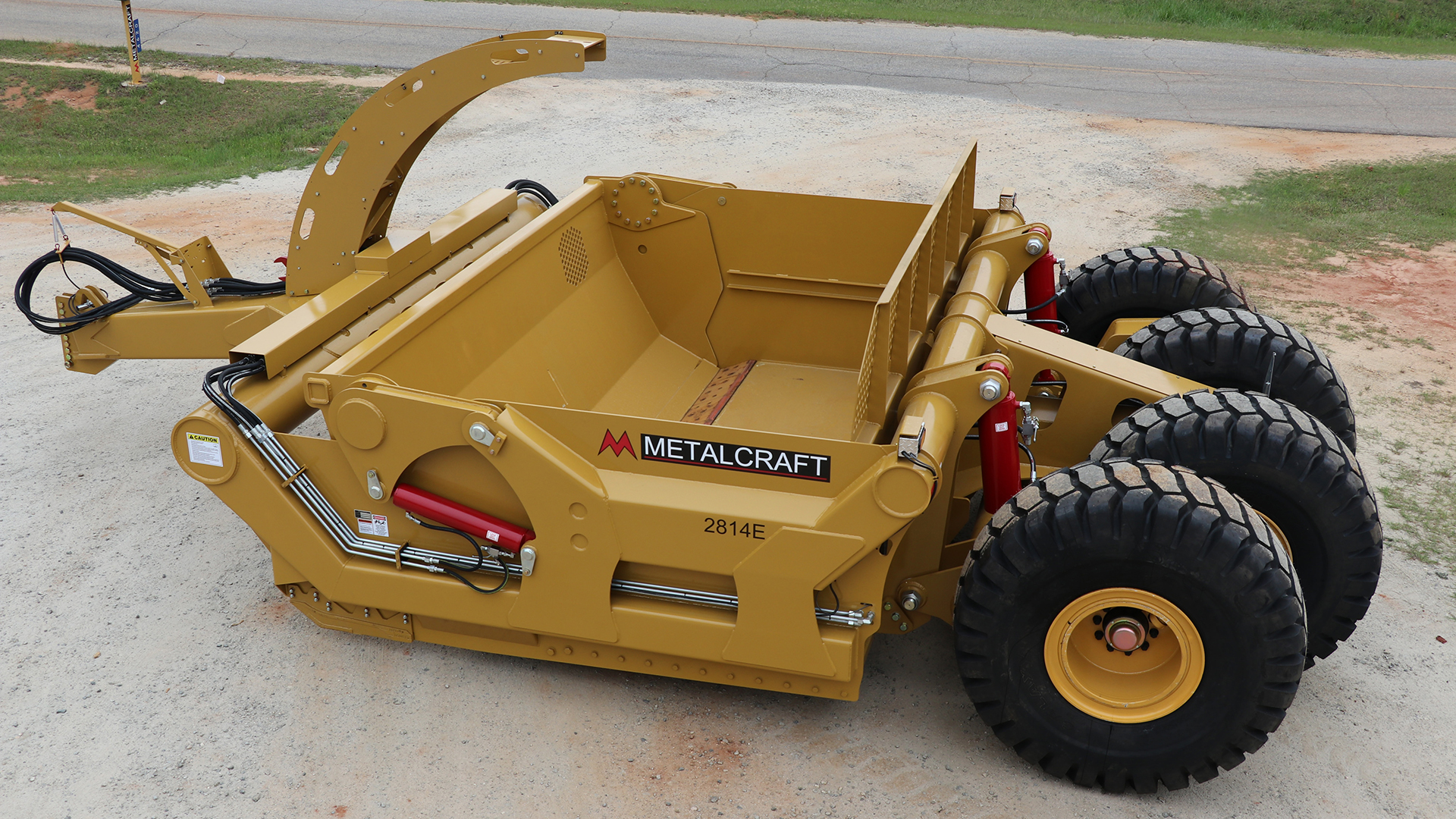

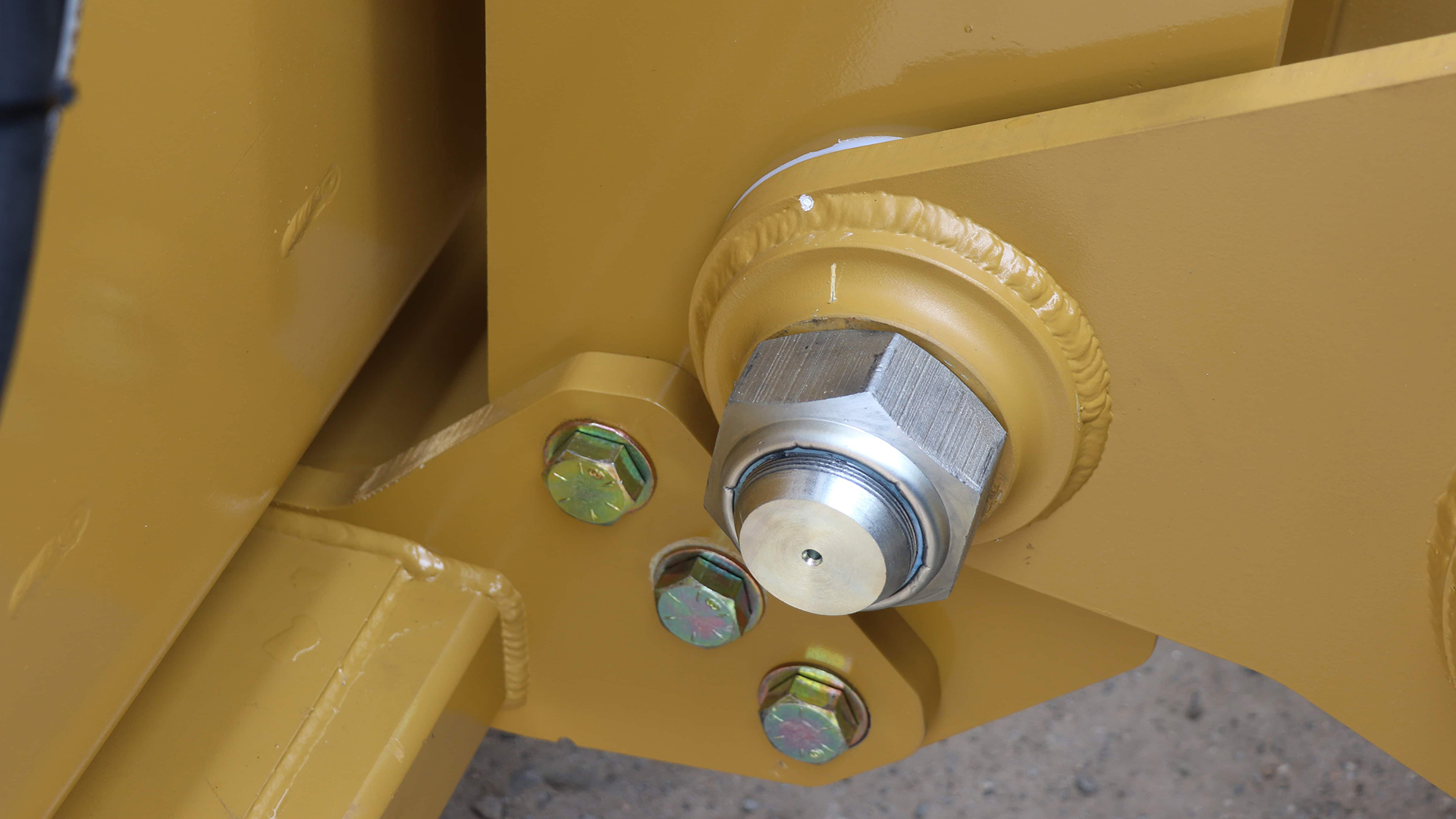

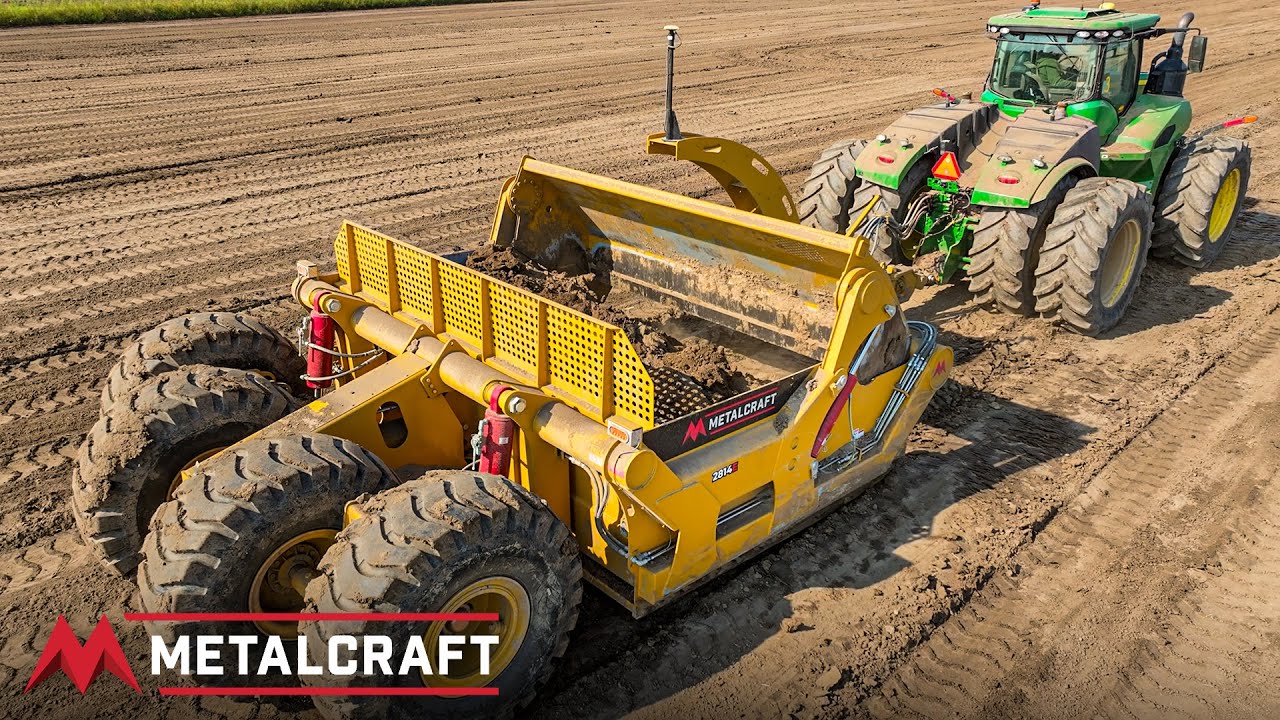

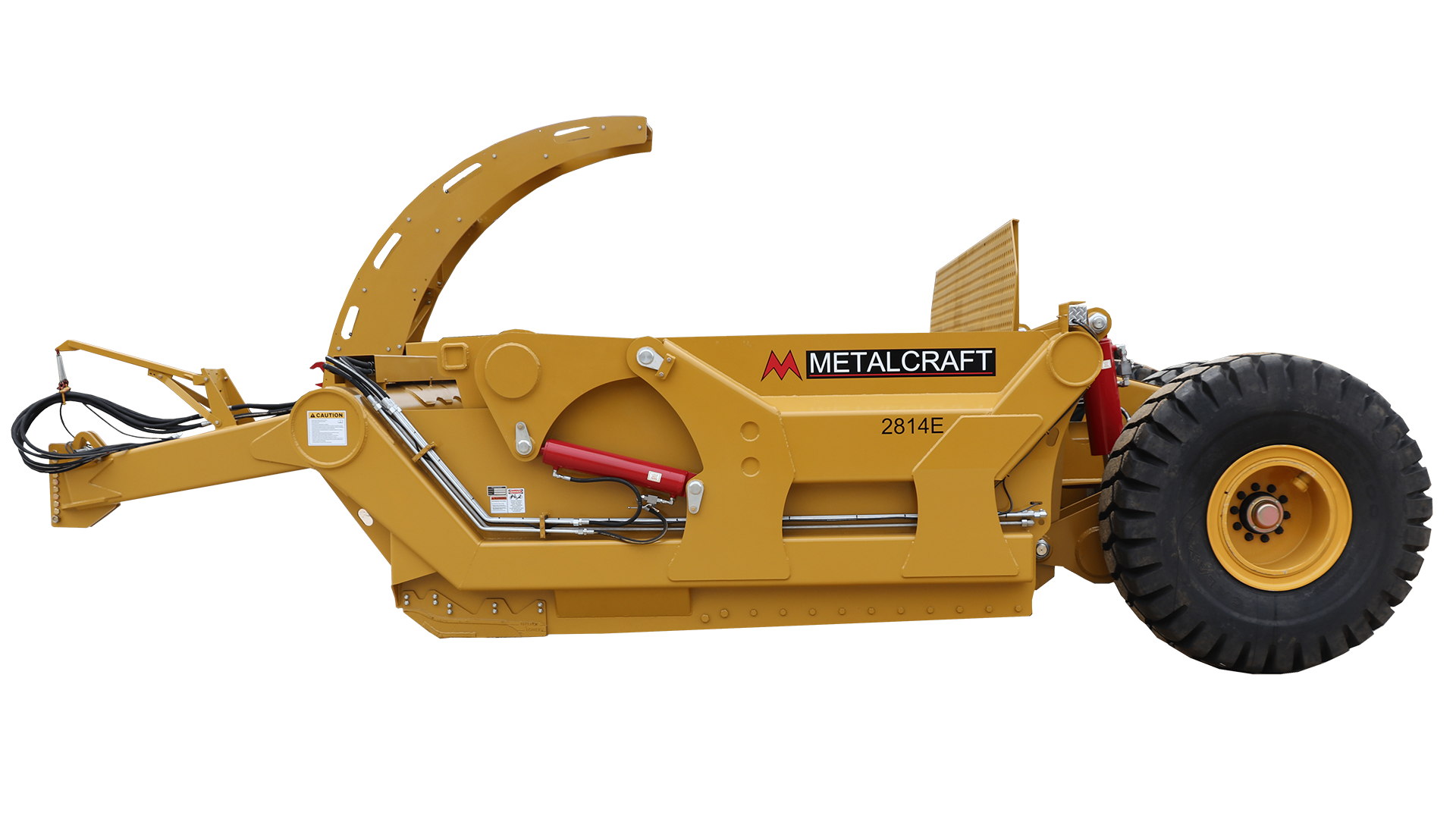

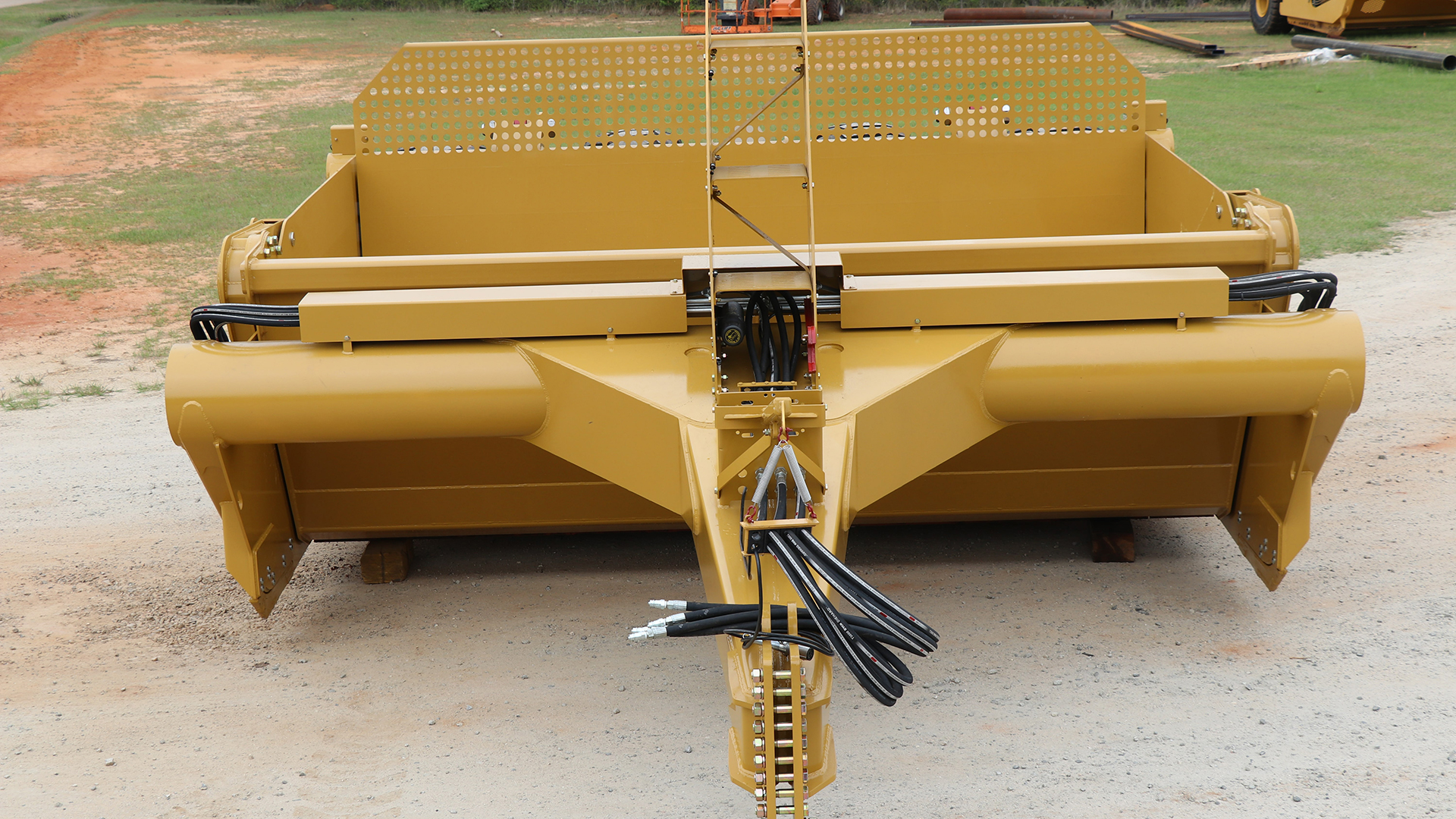

2814e Thumbnail Metalcraft 2814e Profile 2814e Side 2 2814e Side 2814e Back 2814e Tractor 2814e In Action 2814e Front 2814e Hoses 2814e Bolts 2814e Walking Tandem
Walking Tandem icon

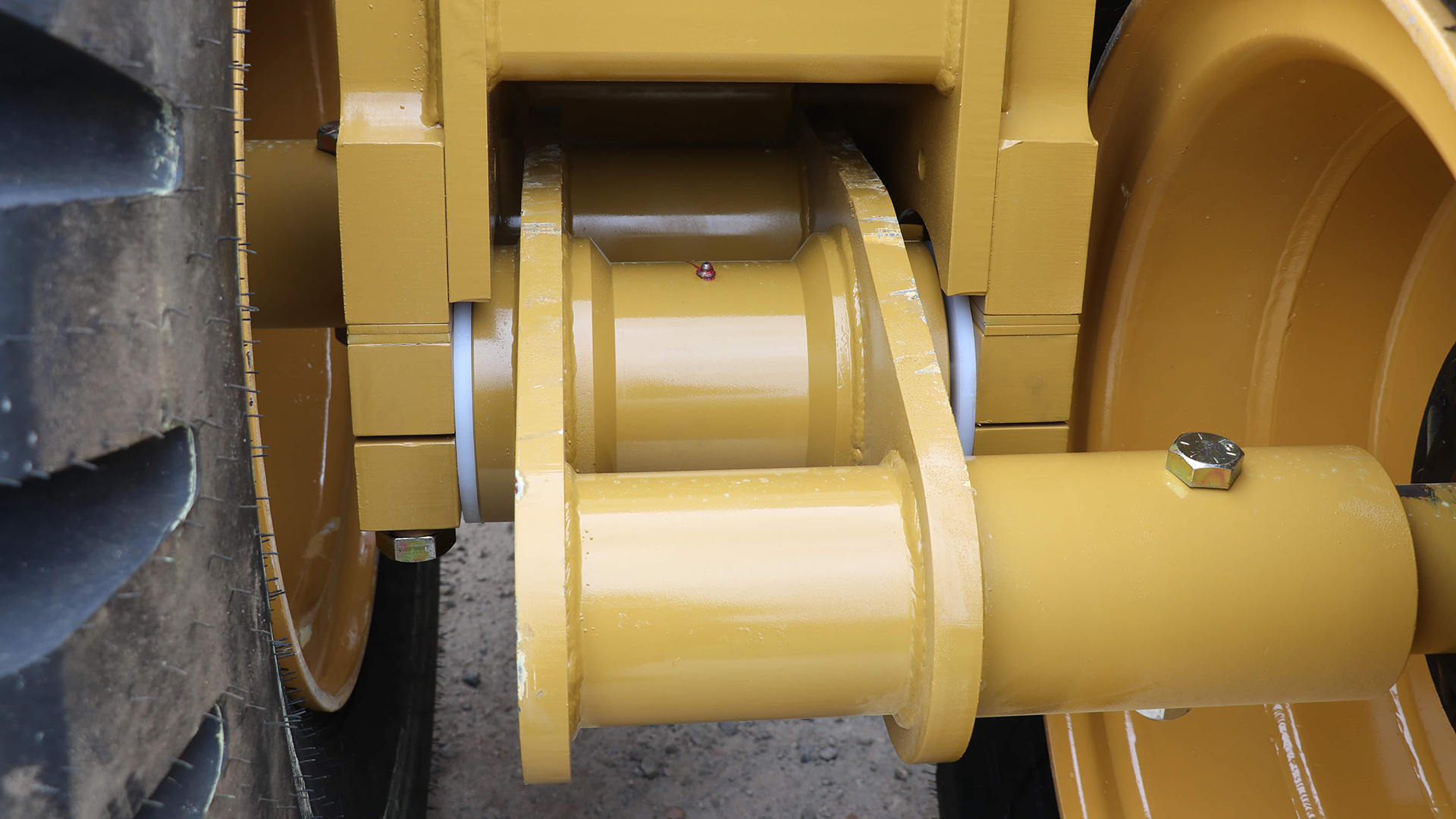

Walking Tandem
Common Blades icon
Common Blades
Ejector Guides icon
Ejector Guides
Easy Loading icon
Easy Loading
Safety First icon
Safety First

Transport loads evenly for a smoother ride and reduced sway.

Utilizing commonly found blades to ensure availability and affordability.

Nylon block ejector guides and simple track design instead of problematic steel rollers.

Rear-lift design lowers the blade's angle of attack as the scraper is lowered, whcih makes loading easier.

Designed with built in shut off valves on cylinders as an additional safety during maintenance of repairs.

Specifications

Imperial / Metric
General Specifications
Transport Specifications
Optional Specifications
Heaped Capacity 28 yd3 21.4 m3
Struck Capacity 20 yd3 15.3 m3
Cutting Width 14' 4.3 m
Tires 23.5 x 25 23.5 x 25
Required Power 450 HP+ 331 kW+
Dimensions 15'4" W x 32'6" L x 9'1 0" H 4.7 mW x 9.9 m L x 3.0 m H
Weight 32,500 lb 14,741 kg
Shipping Optional Containerization Optional Containerization
