Road Graders

Road Graders icon

Replace your inefficient and expensive motor graders with this simple implement to increase haul road speeds and reduce wear on your haulage equipment. The Metalcraft RG implement is available in 13’ (3.96 m) and 14’ (4.27 m) widths. Make quick work of finishing tasks with the RG’s multi-blade design. Smooth your cut zone with your RG to reduce “duck walking” and bouncing while scraping – increasing your loading efficiency.

Download Complete Brochure (Printer Friendly)
Find a Dealer

Media

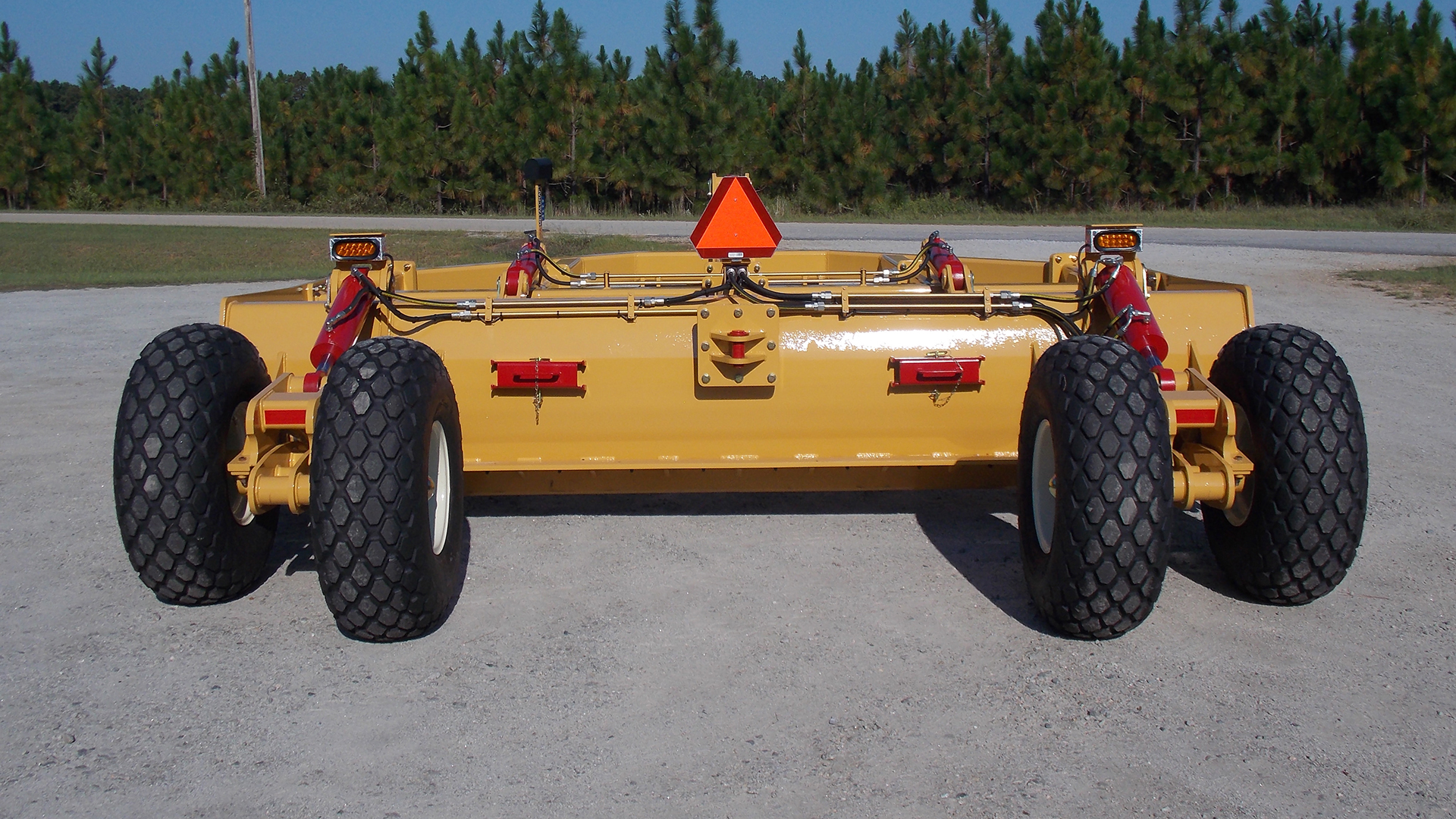

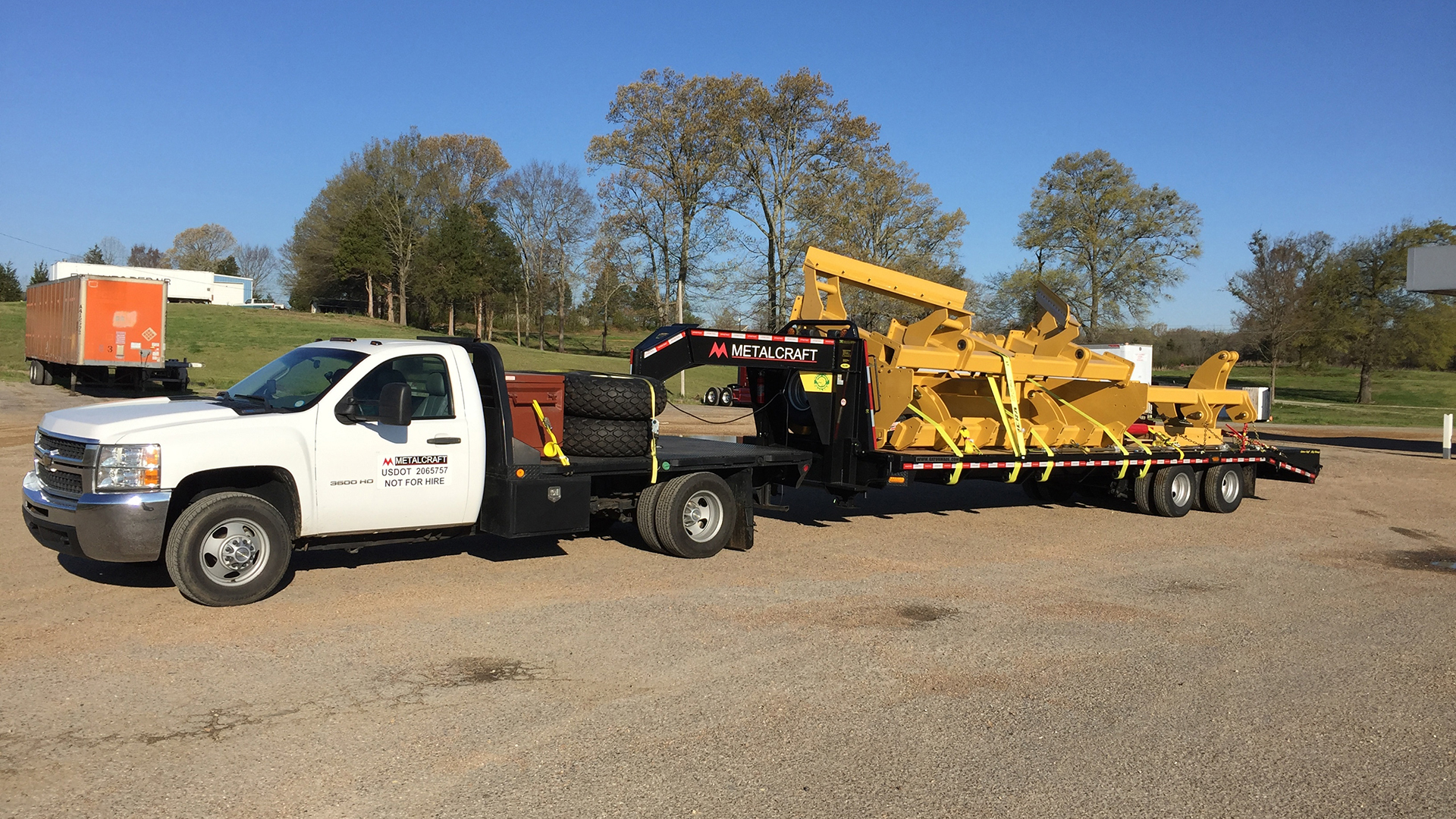

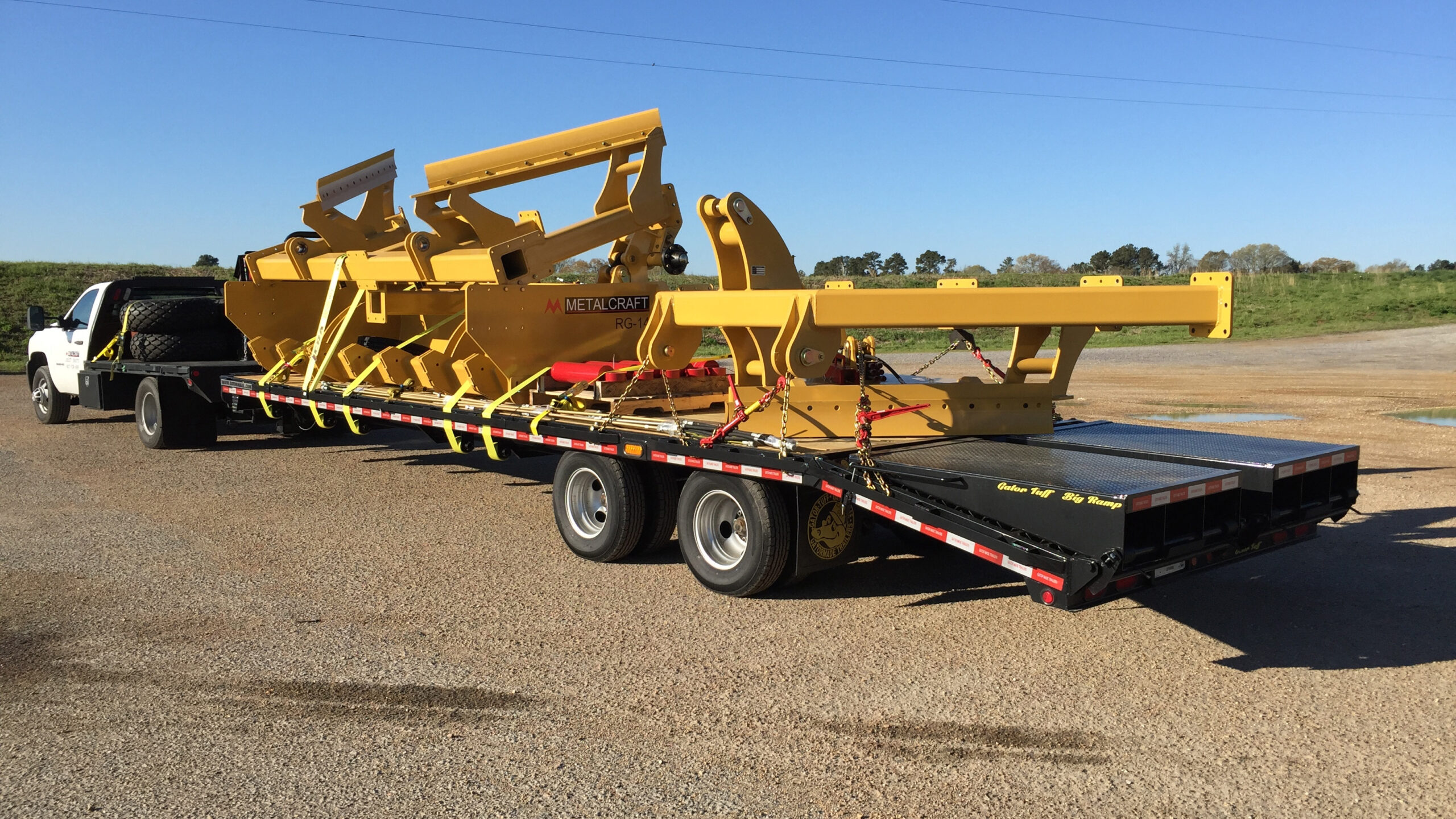

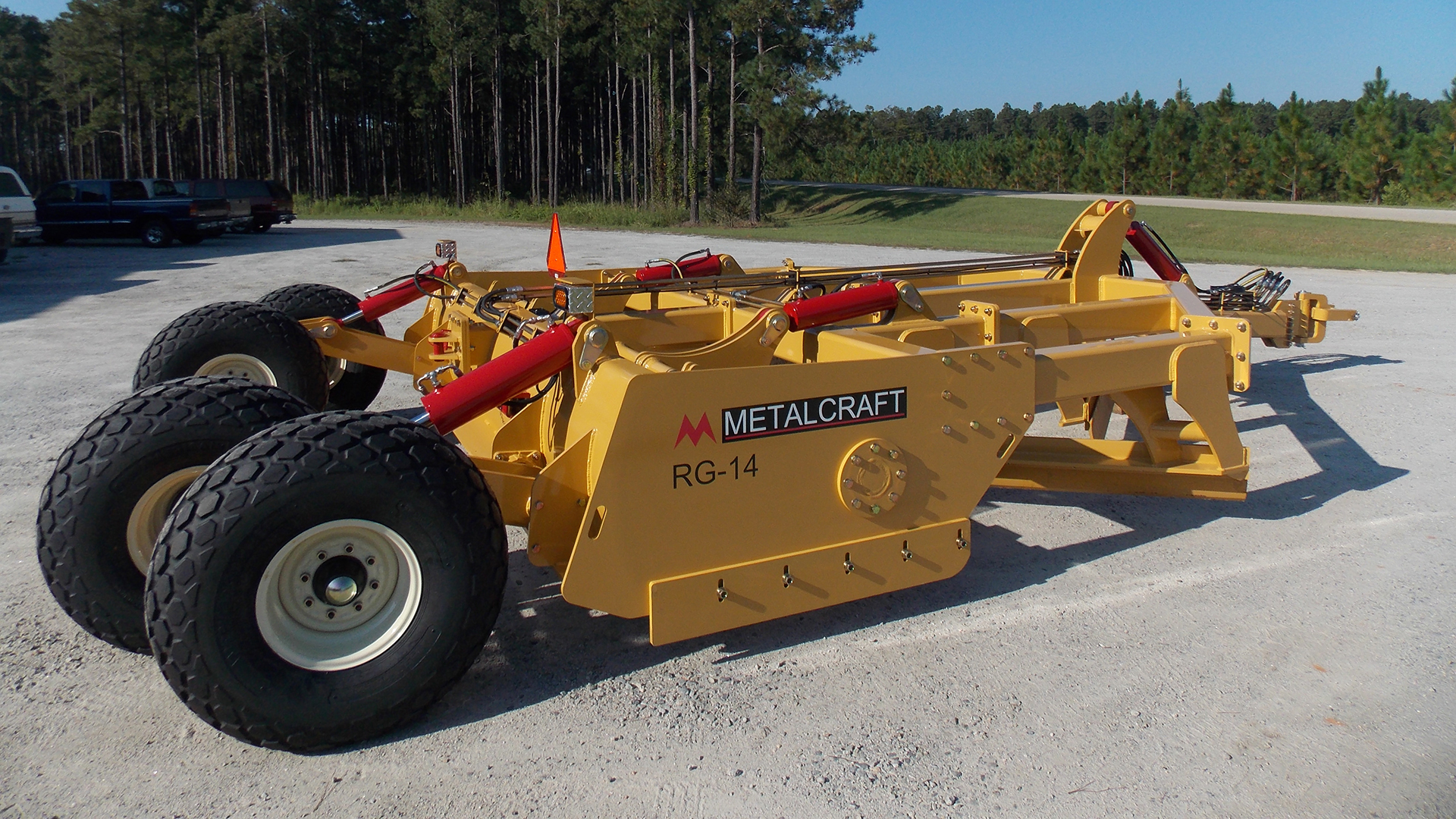

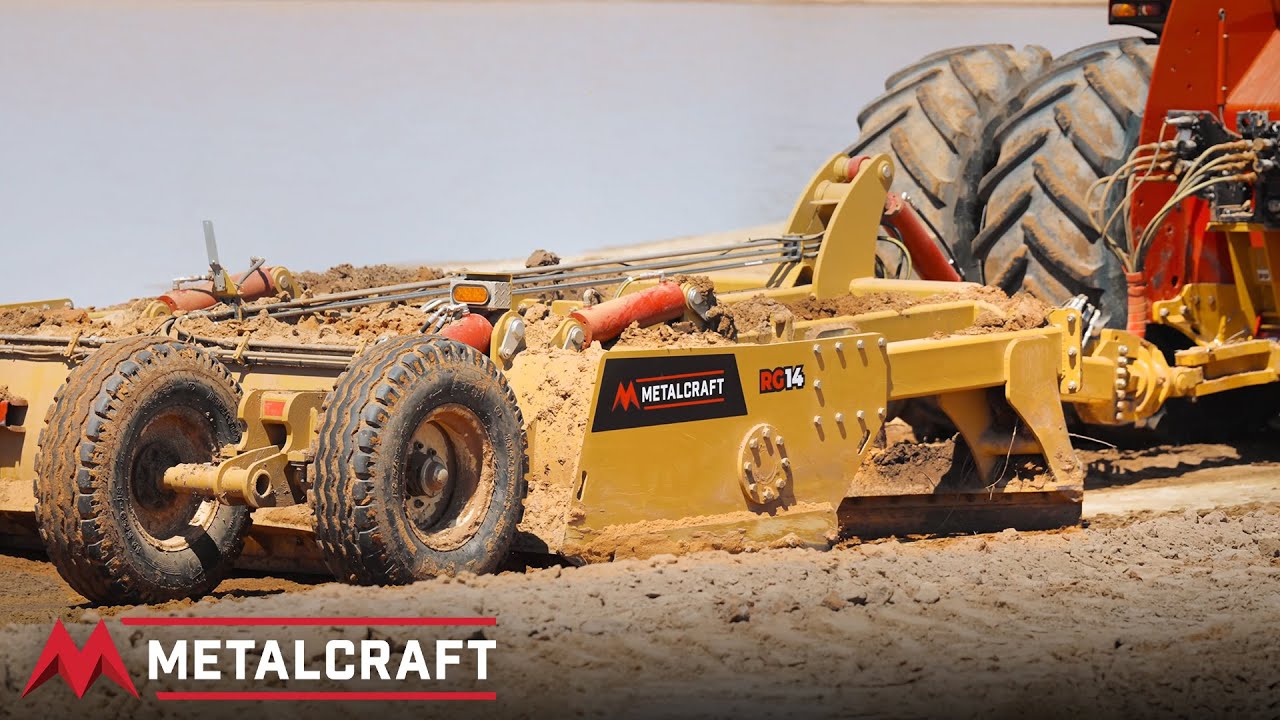

Rg14 Thumbnail Rg14 Icon Rg14 Rg 14 Side Rg 14 Rippers In Action Rg 14 Back Rg 14 Transport Rg 14 Transport 2
Smooth Finish icon
Smooth Finish
Directional Tilt icon
Directional Tilt
Walking Tandem icon
Walking Tandem
Optional Rippers icon
Optional Rippers

Aggressive angled front grader blades loosen dirt while the rear blade creates a smooth finish.

Adjustable tilt for sloped road beds and drainage ways.

Adjustable tilt for sloped road beds and drainage ways.

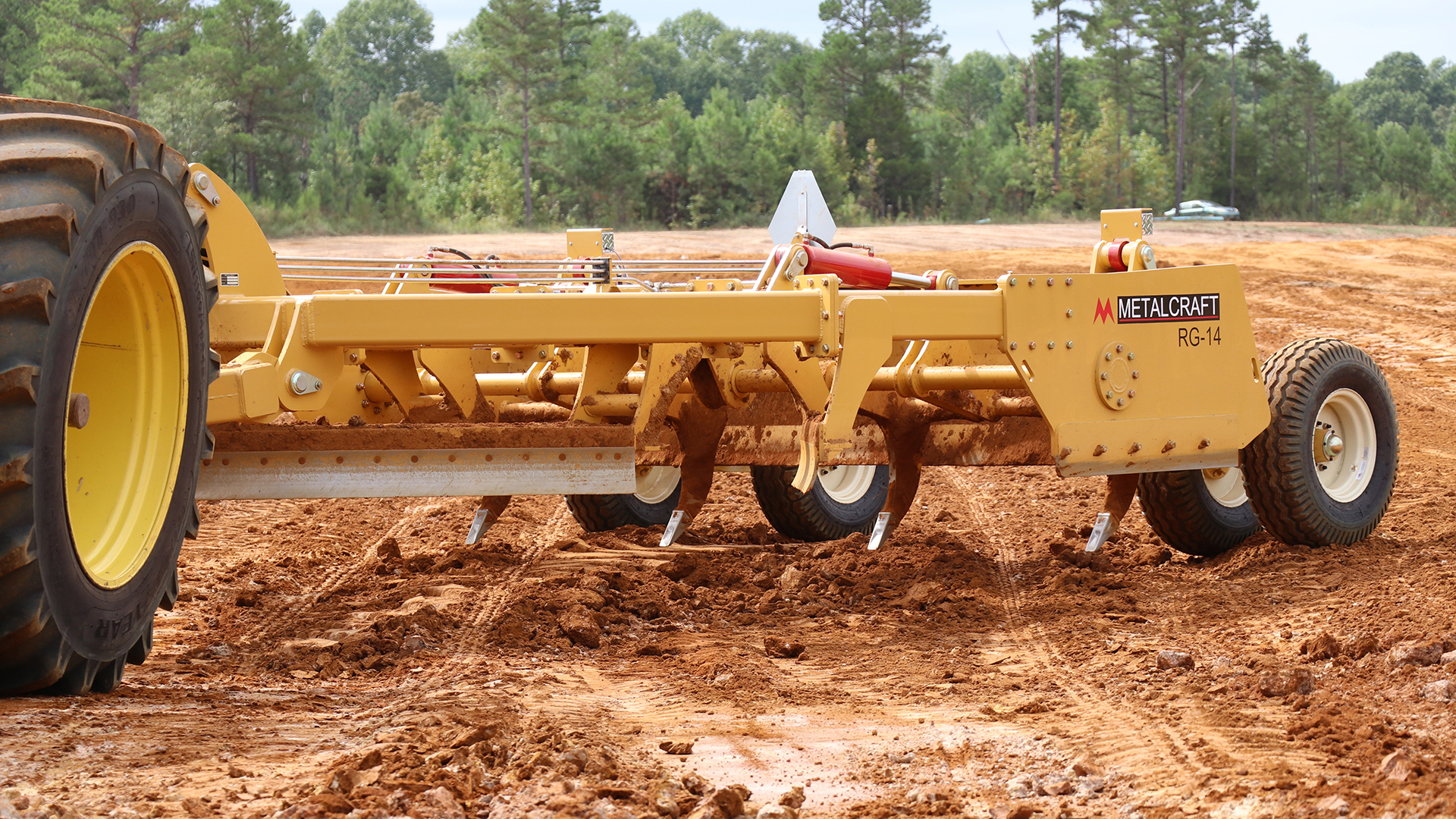

Use optional rippers to make scraper loading more efficient.

Specifications

Imperial / Metric
General Specifications
Transport Specifications
Optional Specifications
Cutting Width 13' 3.96 m
Required Power 150 HP+ 112 kW+
Rear Hitch Standard Standard
Width 13'5 4.11 m
Length 28’9” 8.8 m
Height 4’6” 1.4 m
Weight 11,500 lb 5,216 kg
Rippers Optional Optional
Cutting Width 14' 4.3 m
Required Power 200 HP+ 149 kW+
Rear Hitch Standard Standard
Width 14’5” 4.4 m
Length 28’9” 8.8 m
Height 4’6” 1.4 m
Weight 12,500 lb 5,670 kg
Rippers Optional Optional
