2212D

2212D icon

The 2212D pivot dump scraper is a truly robust machine built to handle your precision land leveling projects. Built with no flexible side sheets, no hinge in the gate and no tubes around the wheels, the 2212D addresses major gripes that earthmovers have expressed about dump style scrapers. Customer feedback is a pillar in our design process and 2212D is a prime example of a machine with features made to exceed our customers expectations.

Download Complete Brochure (Printer Friendly)
Find a Dealer

Media

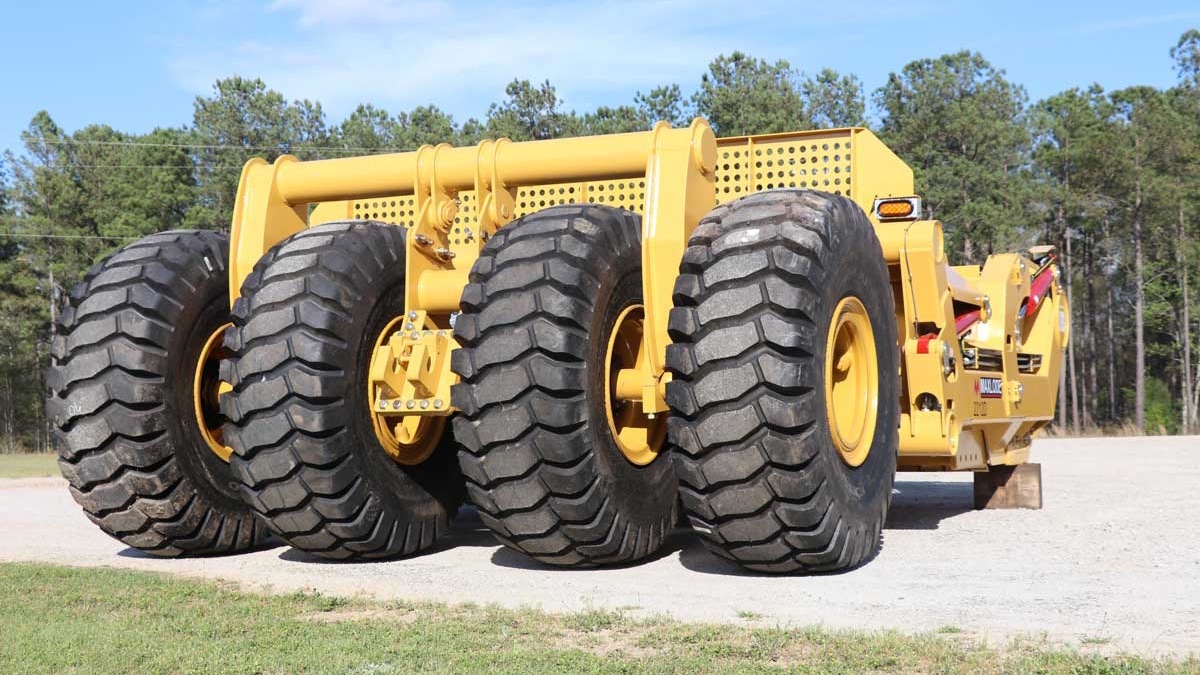

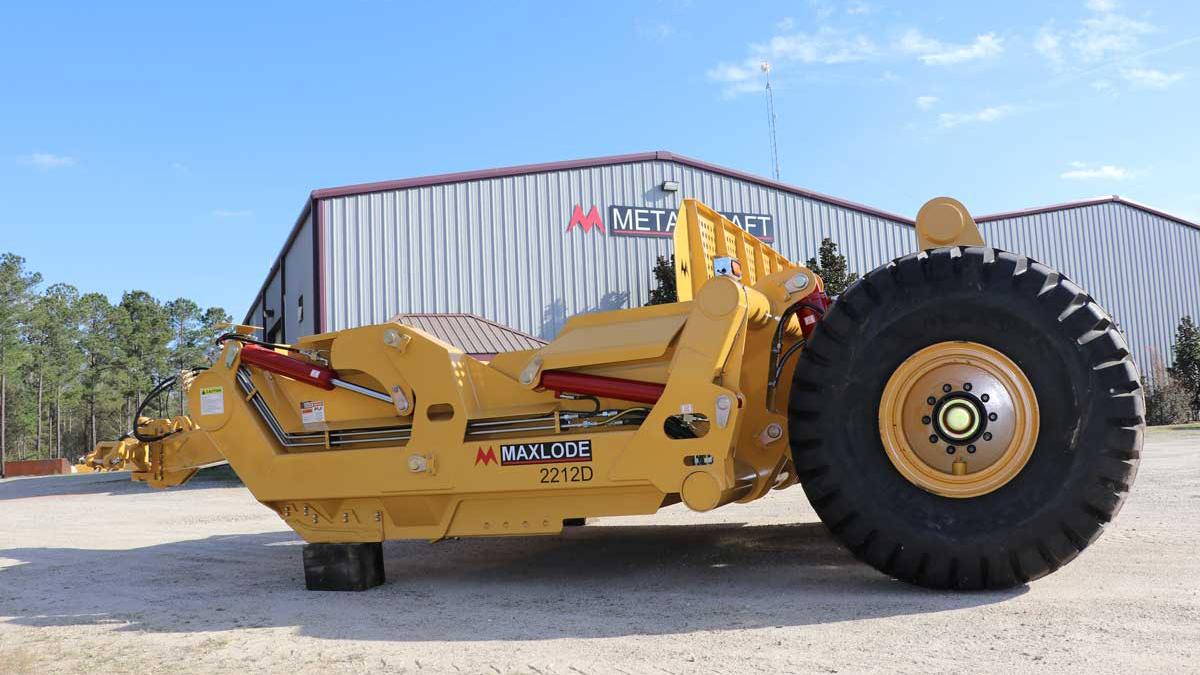

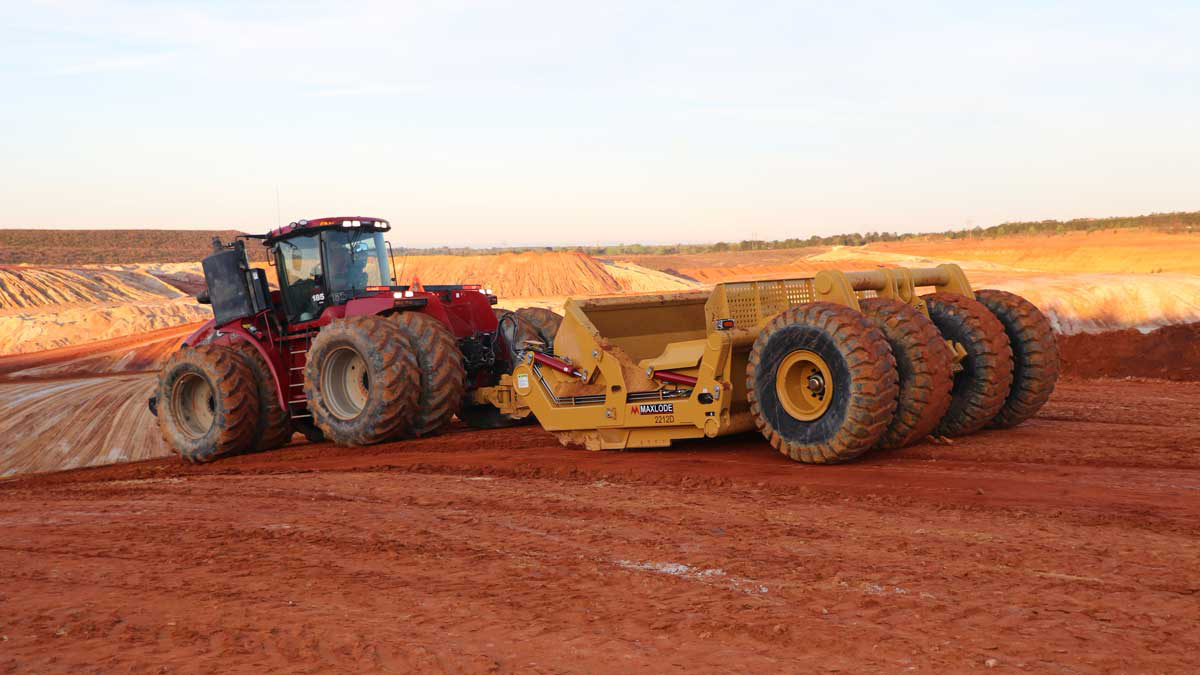

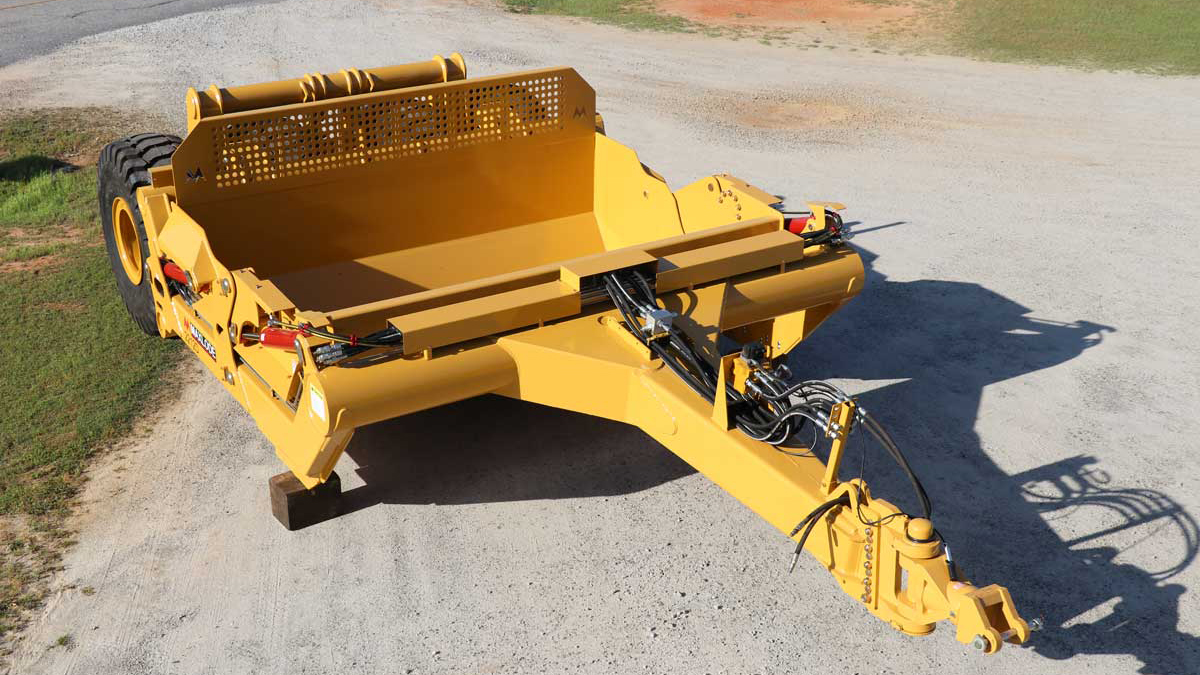

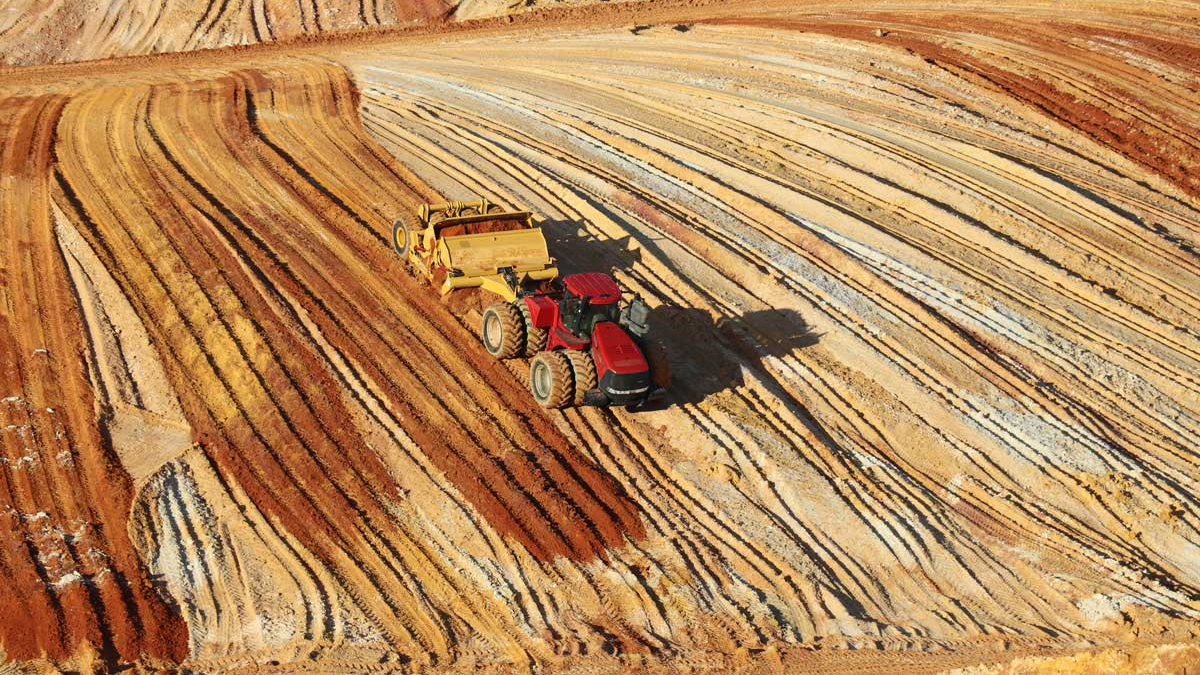

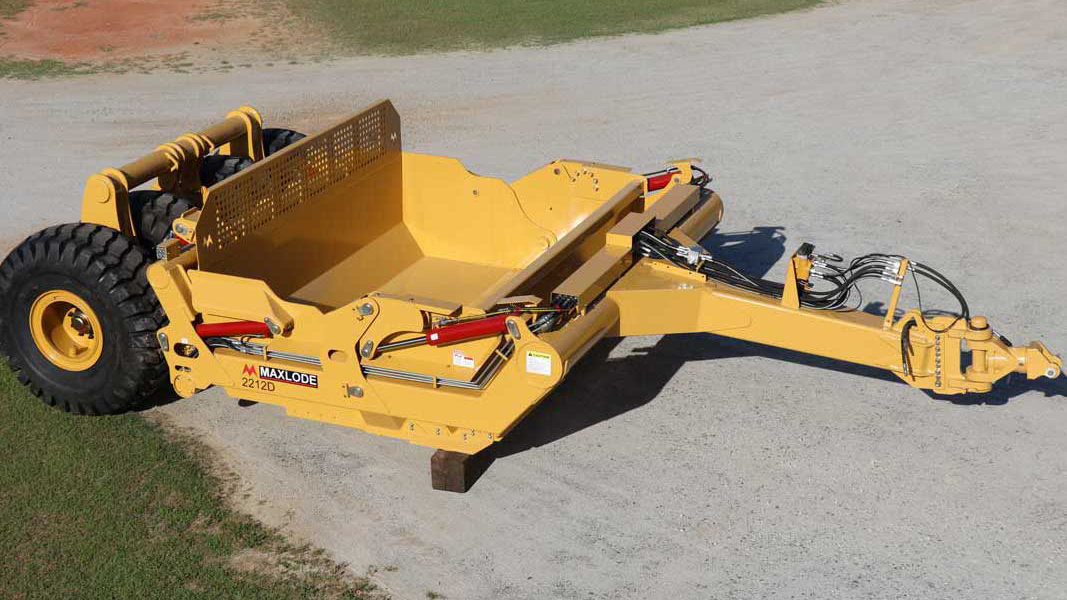

2212d Side 2212d Front 2212d Side Close 2212d Back 2212d Side Tractor 2212d Aerial
Large Gate Opening icon
Large Gate Opening
Extra Flotation icon
Extra Flotation
Bolt on Rear Hitch icon
Bolt on Rear Hitch
Safety Lockout icon
Safety Lockout

A spacious 71" (180 cm) gate opening allows material to unload with ease.

Optional 26.5 x 25 tires provide excellent flotation in wet conditions.

Increase single power unit capacity by pulling various scraper in tandem.

Designed with built in shut off valves on cylinders as an additional safety during maintenance of repairs.

Specifications

Imperial / Metric
General Specifications
Transport Specifications
Optional Specifications
Heaped Capacity 22 yd3 16.8 m3
Struck Capacity 13 yd3 9.9 m3
Cutting Width 12'6" 3.8 m
Tires 23.5 x 25 23.5 x 25
Required Power 450 HP+ 331 kW+
Dimensions 13'11 ¾" W x 29'1 0" L x 9'7" H 4.3 m W x 9.1 m L x 2.9 m H
Weight 27,000 lb 12,247 kg
Tires 26.5 x 25 26.5 x 25
GPS Bracket Optional Optional
