Our heavy-duty box scrapers thrive in the construction and agricultural industry. These land levelers are intentionally designed for excellence in maintaining haul roads, precision leveling, and field drainage. All land leveler models incorporate a folding hitch pole that converts the leveler to legal road width compliance when transporting between job sites. The walking back axles on all models keep the blade stable at all angles. A rear hitch option is also available for towing additional implements. Standard tilt functionality with 30’’ (762 mm) of lift at the cutting edge makes these machines ideal for slopes and crowning. Equipped with dual-mast GPS mounting locations for final precision grading. Easily visible blade height indicators above cylinders ensure you’ll make the right grade.

Download Complete Brochure (Printer Friendly)
Find a Dealer

Media

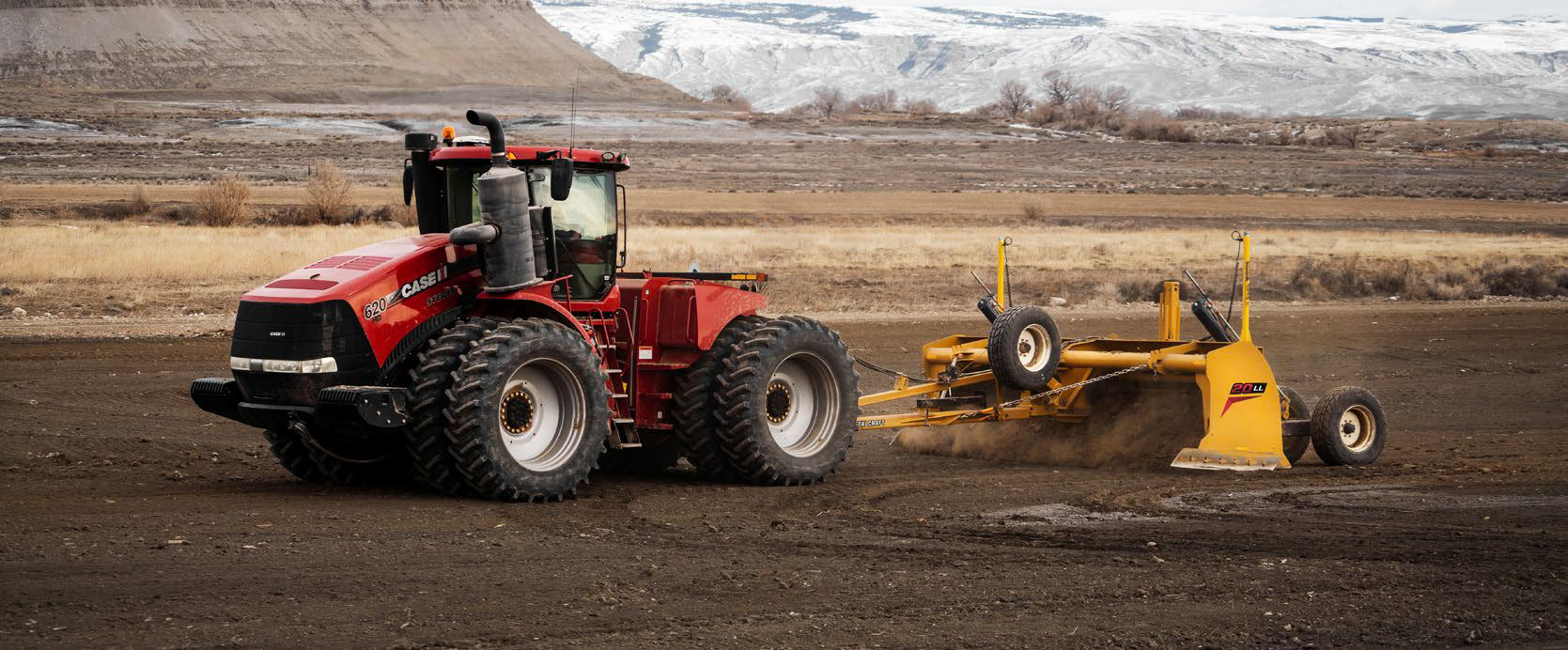

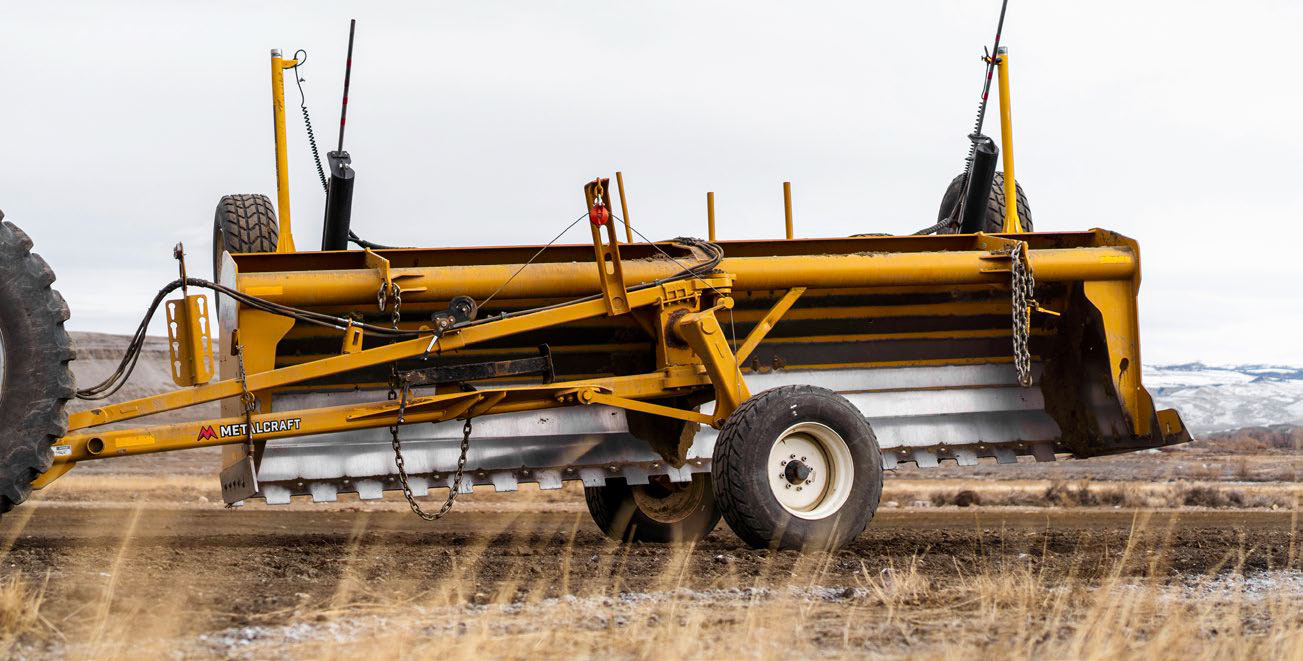

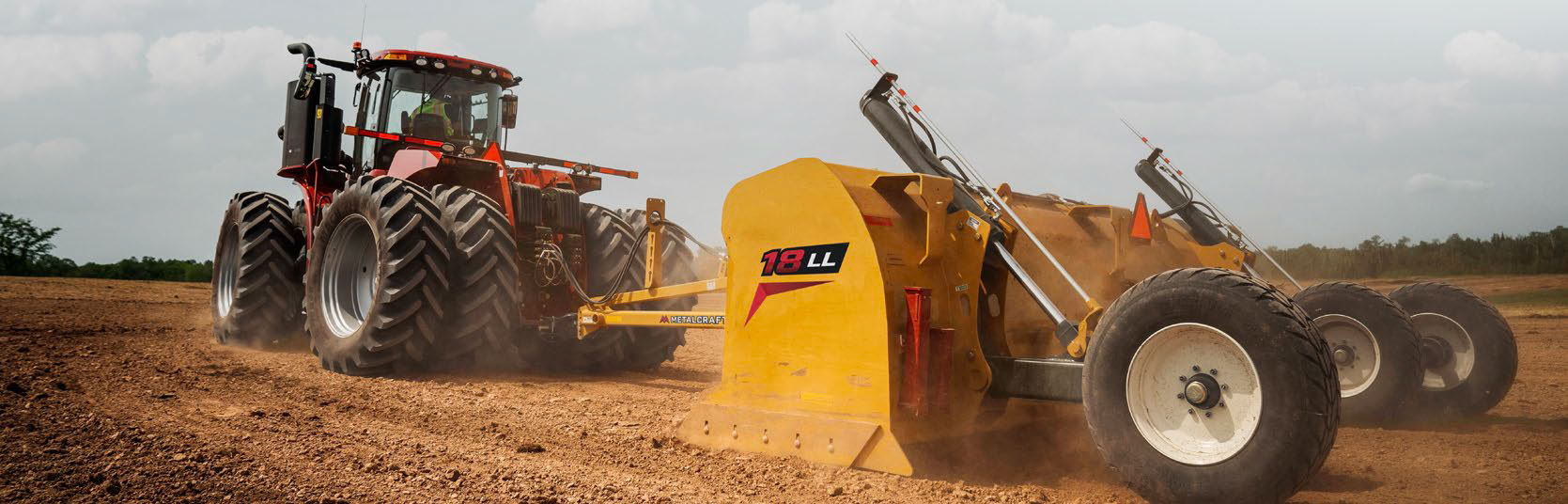

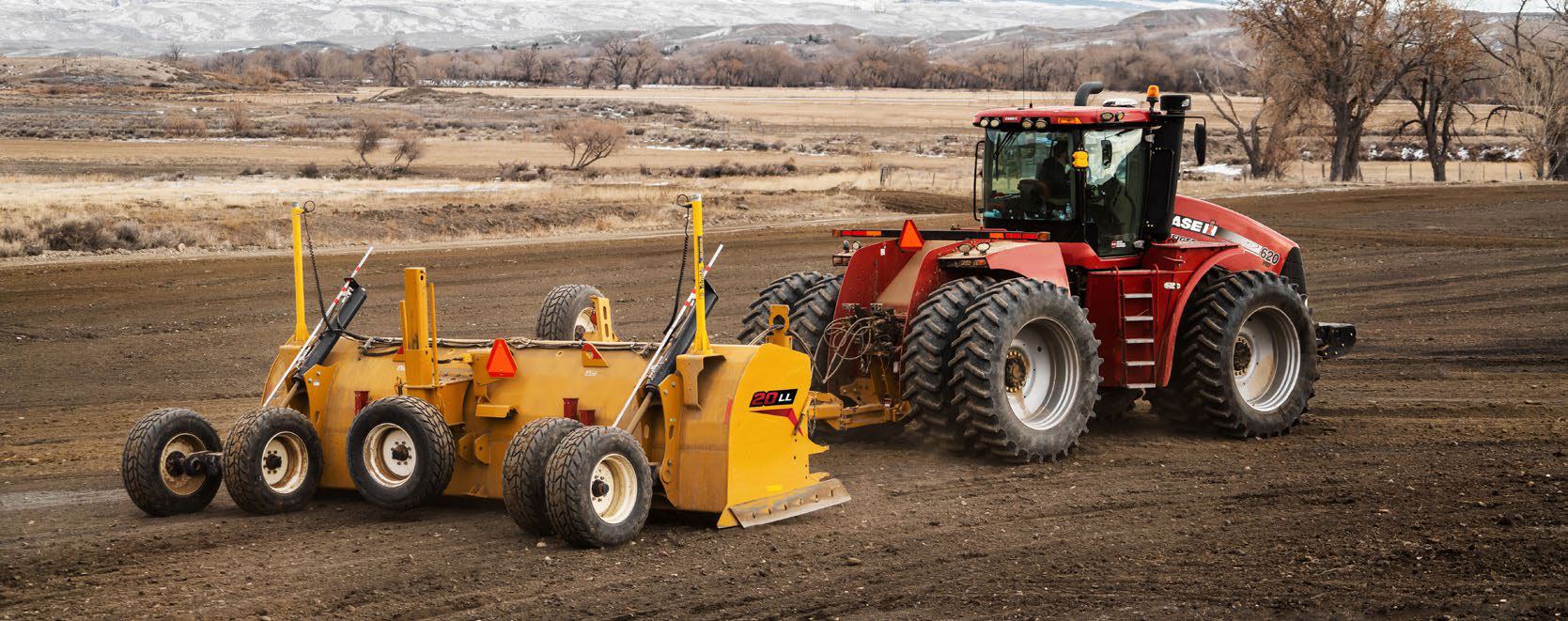

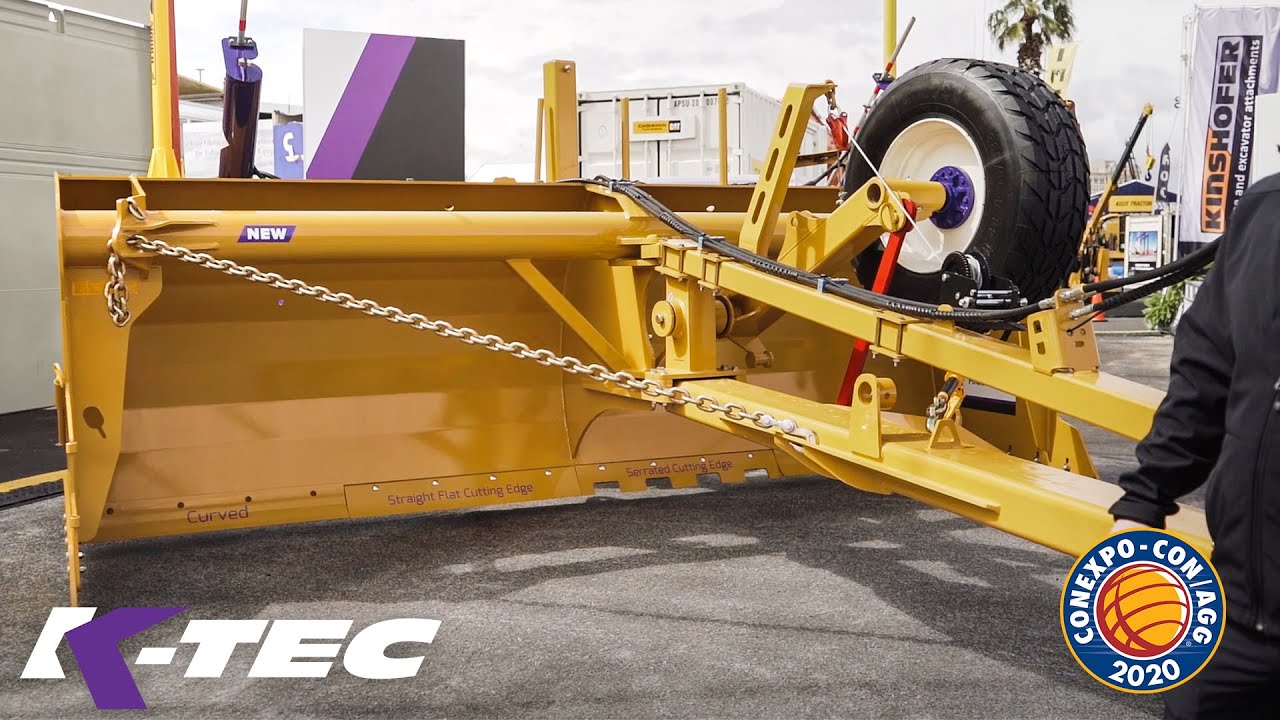

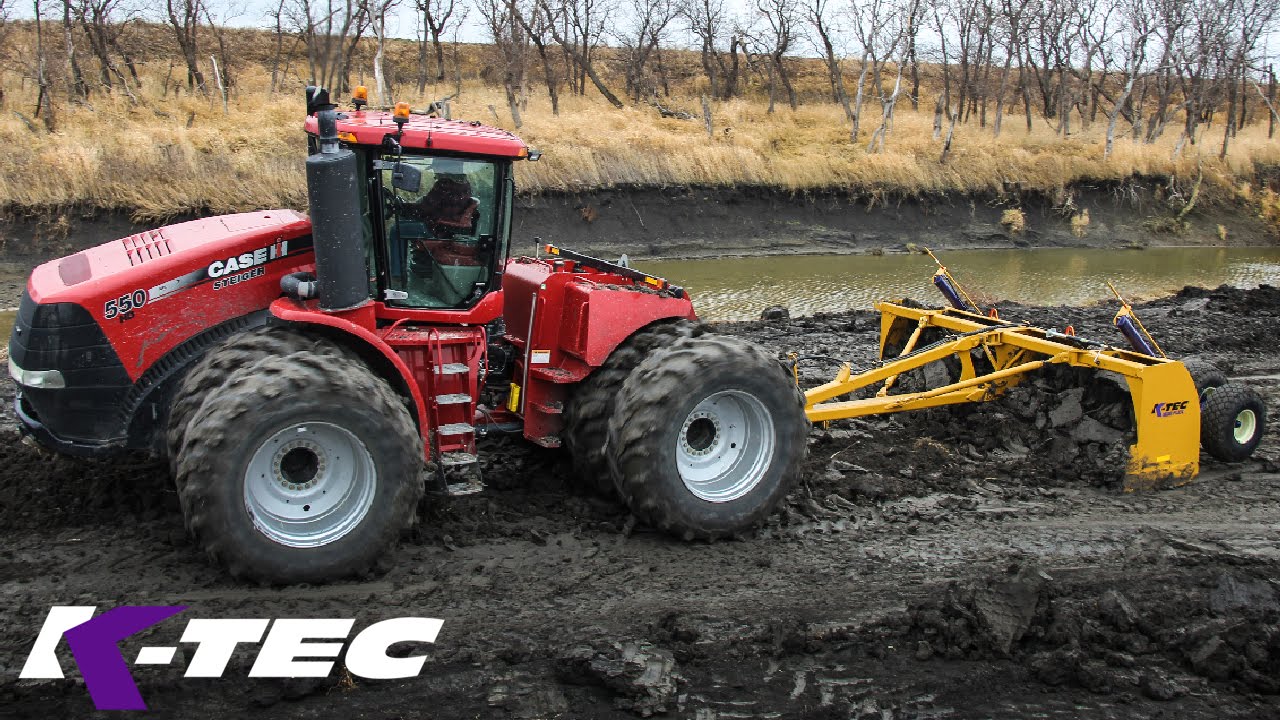

Land Leveler Thumbnail 2 Land Leveler Thumbnail Ll Back View Ll Back View 2 Ll Leveling Ll Transport
GPS Laser Adaptable icon
GPS Laser Adaptable
Turning Radius icon
Turning Radius
20% Yield Increase icon
20% Yield Increase
Depth Level Guage icon
Depth Level Guage
Simplistic Tilt icon
Simplistic Tilt
Mechanical Slope Meter icon
Mechanical Slope Meter
Warranty icon
Warranty
Foldable Hitch icon
Foldable Hitch
Container Shipping icon
Container Shipping

GPS-ready for the efficient excavation and final grade to meet jobsite specifications.

Up to 90° turning radius for ultimate flexibility on the field.

A properly leveled field can produce up to 20% yield increase.

Easy to see precision depth level gauges.

Optional 1 or 2-way blade tilt

Fast and reliable slope reading

1 Year structural, 6 months parts and labor.

Foldable hitchpole for easy transport between jobsites.

Available for containerized international shipping

Specifications

Imperial / Metric
General Specifications
Transport Specifications
Optional Specifications
Box Dimensions 14′ W x 5′ 1″ H x 4′ 7″ L 4.26 m W x 1.5 m H x 1.4 m L
Drag Capacity 11.4 yd3 8.7 m3
Cutting Width 14′ 4.26 m
Single Simple Tilt Standard Standard
Depth Level Gauge Standard Standard
GPS/Laser Adaptability Standard Standard
Tires x 4 385/65 R22.5 385/65 R22.5
Recommended Power 250 HP + 186 kW +
Overall Width 14’ 3" 4.34 m
Overall Length 25’ 7.62 m
Shipping Weight 10,135 lb 4,597 kg
Folded Dimensions 8′ 6″ W x 10′ 6″ H x 22′ L 2.59 m W x 3.2 m H x 6.7 m L
LED Lights Optional Optional
Rear Hitch Optional Optional
Mechanical Slope Meter Optional Optional
Blade Configurations 8 Curved Grader Blade, Straight Flat Cutting Edge, Serrated Cutting Edge 203 mm Curved Grader Blade, Straight Flat Cutting Edge, Serrated Cutting Edge
Hydraulic Configurations 1/2" Tips, 3/4" Tips 12.7 mm Tips, 19 mm Tips
Box Dimensions 16′ W x 5′ 1″ H x 4′ 7″ L 4.9 m W x 1.5 m H x 1.4 m L
Drag Capacity 13 yd3 10 m3
Cutting Width 16′ 4.9 m
Single Simple Tilt Standard Standard
Depth Level Gauge Standard Standard
GPS/Laser Adaptability Standard Standard
Tires x 4 385/65 R22.5 385/65 R22.5
Recommended Power 250 HP + 186 kW +
Overall Width 16’ 3" 4.95 m
Overall Length 25’ 7.62 m
Shipping Weight 10,600 lb 4,808 kg
Folded Dimensions 8’ 6" W x 10’ 6" H x 23’ L L2.59 m W x 3.2 m H x 7.0 m L
LED Lights Optional Optional
Rear Hitch Optional Optional
Mechanical Slope Meter Optional Optional
Blade Configurations 8 Curved Grader Blade, Straight Flat Cutting Edge, Serrated Cutting Edge 203 mm Curved Grader Blade, Straight Flat Cutting Edge, Serrated Cutting Edge
Hydraulic Configurations 1/2" Tips, 3/4" Tips 12.7 mm Tips, 19 mm Tips
Box Dimensions 18′ W x 5′ 1″ H x 4′ 7″ L 5.4 m W x 1.5 m H x 1.4 m L
Drag Capacity 14.6 yd3 11.1 m3
Cutting Width 18′ 5.5 m
Single Simple Tilt Standard Standard
Depth Level Gauge Standard Standard
GPS/Laser Adaptability Standard Standard
Tires x 4 385/65 R22.5 385/65 R22.5
Recommended Power 350 HP + 260 kW +
Overall Width 18’ 3" 5.56 m
Overall Length 25’ 7.62 m
Shipping Weight 11,065 lb 5,019 kg
Folded Dimensions 8′ 6″ W x 10′ 6″ H x 24′ L 2.59 m W x 3.2 m H x 7.31 m L
LED Lights Optional Optional
Rear Hitch Optional Optional
Mechanical Slope Meter Optional Optional
Blade Configurations 8 Curved Grader Blade, Straight Flat Cutting Edge, Serrated Cutting Edge 203 mm Curved Grader Blade, Straight Flat Cutting Edge, Serrated Cutting Edge
Hydraulic Configurations 1/2" Tips, 3/4" Tips 12.7 mm Tips, 19 mm Tips
Box Dimensions 20′ W x 5′ 1″ H x 4′ 7″ L 6.1 m W x 1.5 m H x 1.4 m L
Drag Capacity 16.3 yd3 12.5 m3
Cutting Width 20′ 6.1 m
Single Simple Tilt Standard Standard
Depth Level Gauge Standard Standard
GPS/Laser Adaptability Standard Standard
Tires x 4 385/65 R22.5 385/65 R22.5
Recommended Power 350 HP + 260 kW +
Overall Width 20’ 3" 6.17 m
Overall Length 25’ 7.62 m
Shipping Weight 11,530 lb 5,230 kg
Folded Dimensions 8’ 6" W x 10’ 6" H x 25’ L 2.59 m W x 3.2 m H x 7.62 m L
LED Lights Optional Optional
Rear Hitch Optional Optional
Mechanical Slope Meter Optional Optional
Blade Configurations 8 Curved Grader Blade, Straight Flat Cutting Edge, Serrated Cutting Edge 203 mm Curved Grader Blade, Straight Flat Cutting Edge, Serrated Cutting Edge
Hydraulic Configurations 1/2" Tips, 3/4" Tips 12.7 mm Tips, 19 mm Tips
