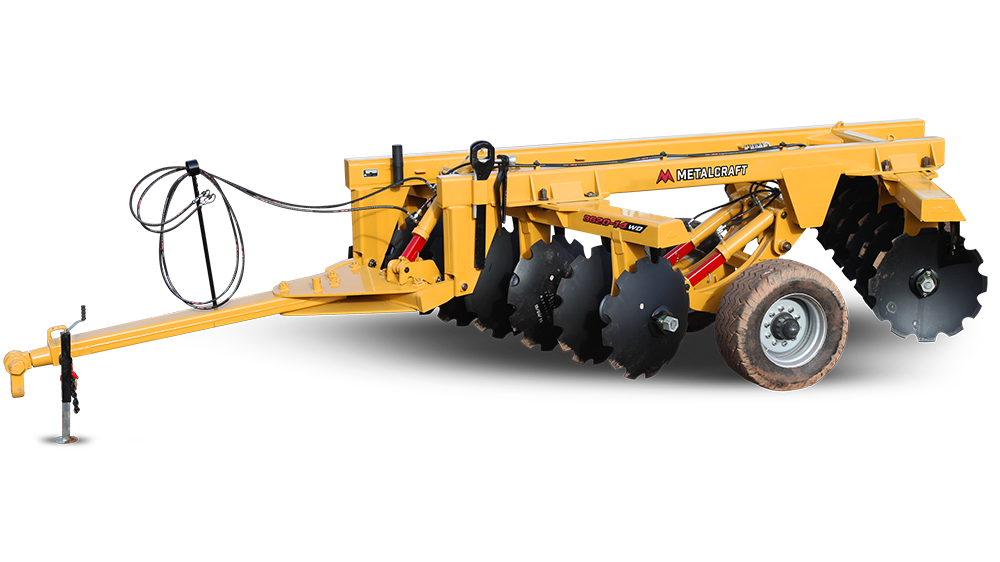

The 3620-14WD is a heavy-duty disc harrow that has 36″ serrated blades that are spaced 20″ apart for deep plowing in heavy trash conditions, mixing and aerating varying soil. Used for land clearing, road building, fire breaks, or soil blending, this disc harrow is built to take on any situation. The large heavy-duty ductile cast spools have thicker sidewalls that provide superior durability against rocks. This disc harrow is ideal for contractors who primarily use 4WD tractors from 300 HP and larger.

Find a Dealer
11' Cutting Width icon
11' Cutting Width
14 Baldes icon
14 Baldes
Adjustable Gang Angles icon
Adjustable Gang Angles
Excellent Ground Engagement icon
Excellent Ground Engagement
Oil Bath Bearing icon
Oil Bath Bearing
Flotation icon
Trash Clearance icon
Trash Clearance
Warranty icon
Shipping icon
Self-Leveling Hitch icon
Self-Leveling Hitch

11′ (3.35 m) cutting width

14 blades manufactured with the highest quality discs in the world to tear up soil in any situation.

Heavy-duty gang beams.

Providing the greatest amount of blade digging force and giving you the highest weight per blade performance.

Oil Bath gang bearings for long service life and less downtime in extreme conditions.

Two new 445/50R-22.5 tires carry these disc harrows over-demanding job sites and rough field conditions.

The lift system within the mainframe provides ample clearance to prevent trash buildup or clogging ahead of the wheels.

1 Year structural, 6 months parts and labor.

Available for containerized international shipping

Self leveling hitch.


Imperial / Metric
General Specifications
Transport Specifications
Recommended Power 300 - 620 HP 224 - 462 kW
Blade Diameter 36" 91 cm
Blade Thickness 0.472" 12 mm
Blade Spacing 20" 51 cm
Blade Qty. 7 Front, 7 Rear 7 Front, 7 Rear
Weight, Total 14,840 lb 6,731 kg
Weight / Blade 1,060 lb 481 kg
Width of Cut 11' 3.4 m
Bearing Oil Bath Oil Bath
Gang Shaft Dia. 2.5" 6.4 cm
Tire Size (2) 445/50R-22.5 (2) 445/50R-22.5
Hub 10 Bolt Hub 10 Bolt Hub
Spindle Dia. 4.25" 108 mm
Hyd. Cyl. Lift Qty. 2 2
Shipping Width 11'7" 3.5 m
Shipping Length 27'6" 8.4 m
Length (folded) 21' 6.4 m
