4220-14WD

4220-14WD icon

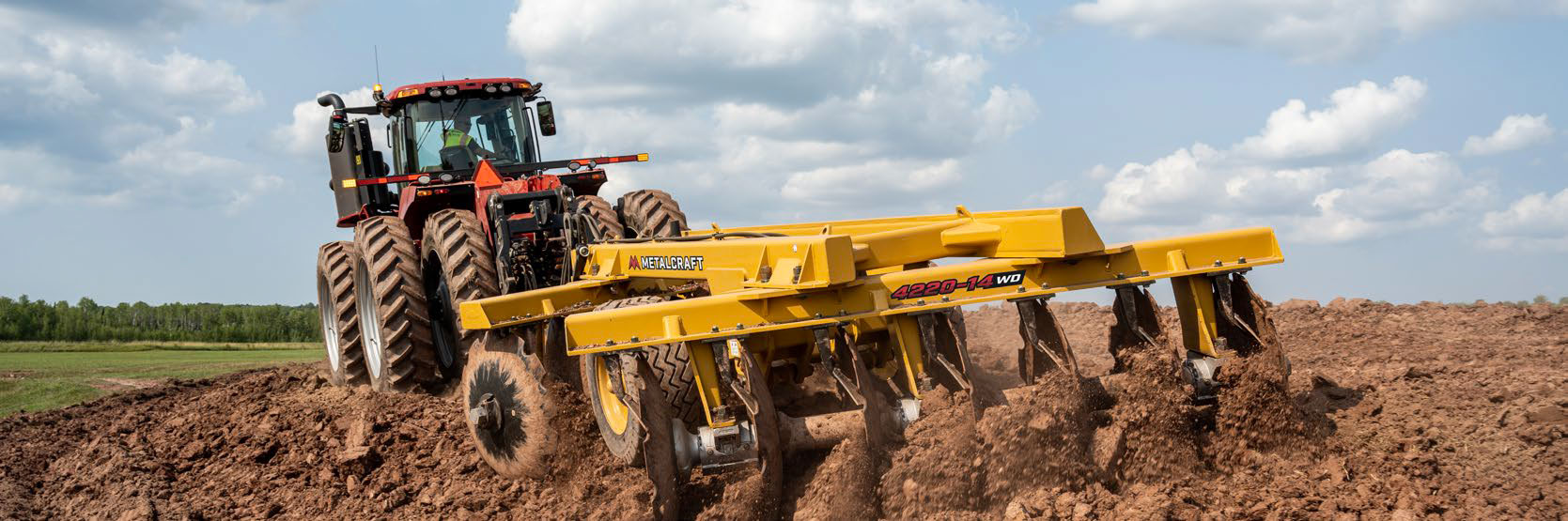

The 4220-14WD is a heavy-duty disc harrow that has 42″ serrated blades that are spaced 20″ apart for deep plowing in heavy trash conditions, mixing and aerating varying soil. Used for land clearing, road building, fire breaks, or soil blending, this disc harrow is built to take on any situation thrown at it. The large heavy-duty ductile cast spools have thicker sidewalls that provide superior durability against rocks. The 4220-14WD disc harrow is ideal for contractors who primarily use 4WD tractors from 300 HP and larger.

Find a Dealer

Media

11' Cutting Width icon
11' Cutting Width
14 Baldes icon
14 Baldes
Adjustable Gang Angles icon
Adjustable Gang Angles
Excellent Ground Engagement icon
Excellent Ground Engagement
Oil Bath Bearing icon
Oil Bath Bearing
Flotation icon
Flotation
Trash Clearance icon
Trash Clearance
Warranty icon
Warranty
Shipping icon
Shipping
Self-Leveling Hitch icon
Self-Leveling Hitch

11′ (3.35 m) cutting width

14 blades manufactured with the highest quality discs in the world to tear up soil in any situation.

Heavy-duty gang beams.

Providing the greatest amount of blade digging force and giving you the highest weight per blade performance.

Oil Bath gang bearings for long service life and less downtime in extreme conditions.

Two new 445/50R-22.5 tires carry these disc harrows over-demanding job sites and rough field conditions.

The lift system within the mainframe provides ample clearance to prevent trash buildup or clogging ahead of the wheels.

1 Year structural, 6 months parts and labor.

Available for containerized international shipping

Self leveling hitch.

Specifications

Imperial / Metric
General Specifications
Transport Specifications
Recommended Power 400 - 620 HP 298 - 462 kW
Blade Diameter 42" 107 cm
Blade Thickness 0.472" 12 mm
Blade Spacing 20" 51 cm
Blade Qty. 7 Front, 7 Rear 7 Front, 7 Rear
Weight, Total 15,720 lb 7,130 kg
Weight / Blade 1,123 lb 509 kg
Width of Cut 11' 3.4 m
Bearing Oil Bath Oil Bath
Gang Shaft Dia. 2.5" 64 mm
Tire Size (2) 445/50R-22.5 (2) 445/50R-22.5
Hub 10 Bolt Hub 10 Bolt Hub
Spindle Dia. 4.25" 10.8 cm
Hyd. Cyl. Lift Qty. 2 2
Shipping Width 11'7" 3.5 m
Shipping Length 27'6" 8.4 m
Length (folded) 21' 6.4 m
